8EDGVCB-5.0-10P-11-00(H) DEGSON Terminal block

Symbol Micros: Z8EDGVCB-5.0/10

59065

Z8EDGVCB-5.0/10

Contractor Symbol:

Case : Rys.8EDGVCB-5.0/10

Datasheet

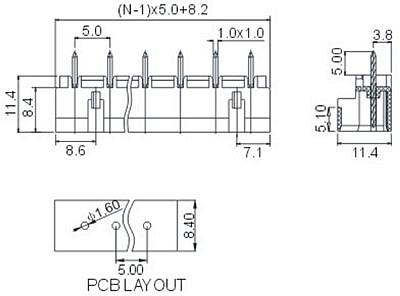

Technical drawing Add to favourites

10 poles; pitch: 5.0mm; height 12.0mm; gray color 320V (VDE), 20A, PA66, UL94V-0

Parameters

Height:	12,0mm
Number of pins:	10
Colour:	Grey
Manufacturer:	DEGSON
Terminal pitch:	5,0mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	12,0mm
Number of pins:	10
Colour:	Grey
Manufacturer:	DEGSON
Terminal pitch:	5,0mm
