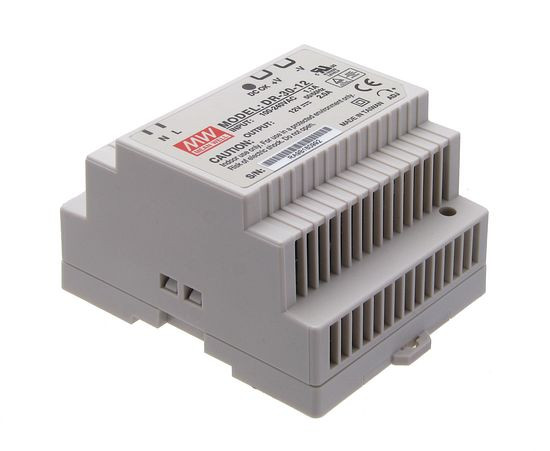

DR-30-12 Mean Well Power supply
Symbol Micros:
ZA DR-30-12
Case : Rys.DR-30-12
Single output industrial; DIN rail; power supply; 24W; 12V; 2A; dimensions: 78x93x56mm; weight: 0.270 kg
Parameters
Output current: | 2A |
Power: | 24W |
Dimensions: | 78x93x56mm |
Output voltage: | 12V |
Manufacturer: | Mean Well |
Output current: | 2A |
Power: | 24W |
Dimensions: | 78x93x56mm |
Output voltage: | 12V |
Manufacturer: | Mean Well |
Detailed description
Product Type: Single Output Switching Power Supply for DIN Rail
Model: ZA DR-30-12
Rated Power: 24.0W
Output Voltage: 12V
Rated Current: 2.00A
Dimensions: 78 x 93 x 56 mm
Weight: 0.270 kg
Frequency Range: 47 ~ 63Hz
Operating Temperature: -20°C to +60°C
Features:
- High efficiency level of 81%
- Universal AC input voltage range
- Air convection cooling
- Can be mounted on TS-35/7.5 or 15 DIN rails
- Long lifespan and high reliability
- Protections: overload, overvoltage
- Operational indicator - LED diode
- Insulation class: II
- Compliant with RoHS technology
- 100% full-load burn-in test
- 3-year warranty
