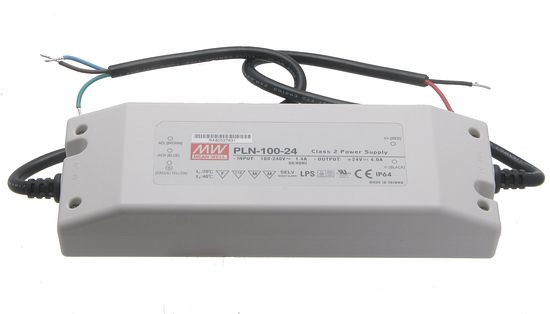

PLN-100-24 Mean Well Power supply
Symbol Micros:
ZA PLN100-24

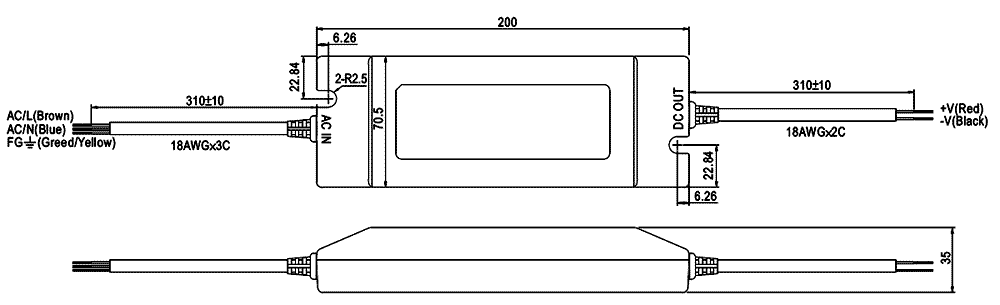

Case : Rys.PLN100-24
Single Output; Switching Power Supply; 96W; 24V; 4A; IP64; dimensions: 200x70.5x35mm; weight: 0.625kg
Parameters
| Power: | 96W |
| Output current: | 4A |
| Dimensions: | 200x70.5x35mm |
| Output voltage: | 24V |
| IP rating: | IP64 |
| Manufacturer: | Mean Well |
| Power: | 96W |
| Output current: | 4A |
| Dimensions: | 200x70.5x35mm |
| Output voltage: | 24V |
| IP rating: | IP64 |
| Manufacturer: | Mean Well |
Detailed description
Single-output switching power supply in IP64 enclosure MEAN WELL
Model: PLN-100-24
Power: 96W
Output voltage: 24V DC
Rated current: 4.00A
Ingress protection rating: IP64
Input voltage: 85 ~ 264V AC
Frequency range: 47 ~ 63Hz
Operating temperature: -20°C to +60°C
Dimensions: (L*W*H) 200 x 70.5 x 35 mm
Weight: 0.52 kg
