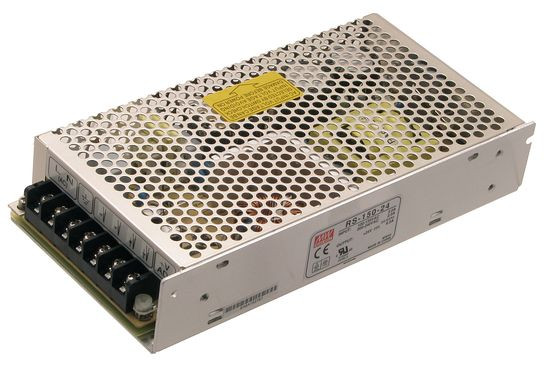

RS150-24 Mean Well Power supply
Symbol Micros:
ZA RS150-24
Case : Rys.RS150-24
Single output; switching power supply; 156W; 24V; 6.5A; dimensions: 199x98x38 mm; weight: 0.700 kg
Parameters
| Power: | 156W |
| Output current: | 6,5A |
| Dimensions: | 199x98x38mm |
| IP rating: | 86% |
| Output voltage: | 24V |
| Manufacturer: | Mean Well |
| Power: | 156W |
| Output current: | 6,5A |
| Dimensions: | 199x98x38mm |
| IP rating: | 86% |
| Output voltage: | 24V |
| Manufacturer: | Mean Well |
Detailed description
Product type: Single-output switching power supply for LED
Model: ZA RS150-24
Rated power:150W
Output voltage: 24V
Rated current: 6.50A
Dimensions: 199 x 98 x 38 mm
Weight: 0.700 kg
Frequency range: 47 ~ 63Hz
Operating temperature: -25°C to +70°C
Features:
- high efficiency level of 86%,
- universal AC input voltage range,
- cooled by free air convection,
- dedicated for LED applications,
- long lifespan and reliability,
- protections: overload, overvoltage,
- RoHS compliant testing,
- 100% full load burn-in test,
- 3-year warranty.
