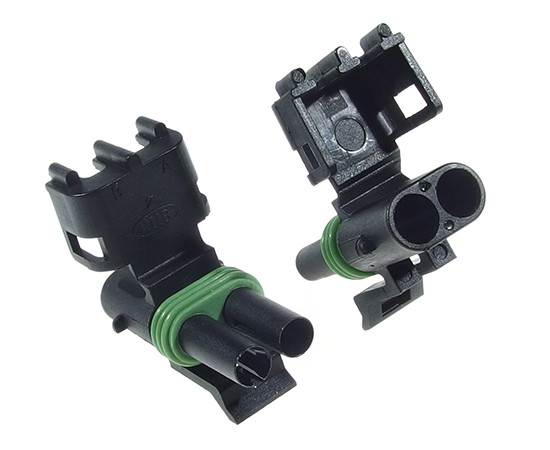

Female plug 2 pins, Weather Pack

Symbol Micros: ZS 12015792-C

218817

ZS 12015792-C

Contractor Symbol:

Case : Rys.12015792-C

Technical drawing Add to favourites

20A, w/o terminals material: nylon, operating temperature -40..+125°C

Parameters

Wire width:	N/A
Connector type:	Weather Pack
Colour:	N/A
Type of connector:	Plug
Mounting:	N/A
Contact material:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Wire width:	N/A
Connector type:	Weather Pack
Colour:	N/A
Type of connector:	Plug
Mounting:	N/A
Contact material:	N/A
