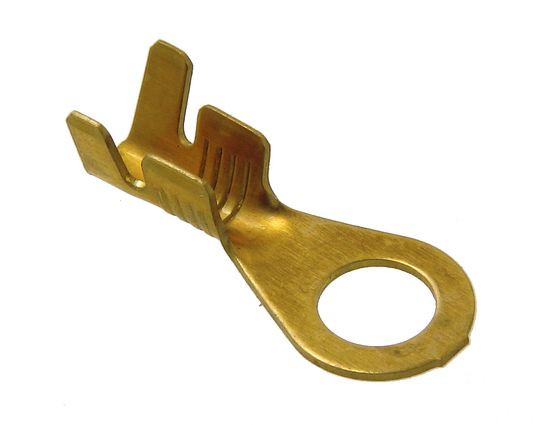

3805/M.05.00.9 IMP Ring terminal

Symbol Micros: ZS05o

16963

ZS05o

Contractor Symbol:

Case : Rys.ZS05o

Datasheet

Technical drawing Add to favourites

non-insulated; straight; overall length: 20mm; M5; for cable: 1~2,5mm2; contact material: copper

Parameters

Wire width:	1~2.5mm2
Connector type:	Ring
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Crimped
Contact material:	Copper

All parameters

Manufacturer:: IMP Manufacturer part number: 3805/M.05.00.9 RoHS Case style: Rys.ZS05o

In stock:

800 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1798	0,0719	0,0418	0,0348	0,0327

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Wire width:	1~2.5mm2
Connector type:	Ring
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Crimped
Contact material:	Copper
