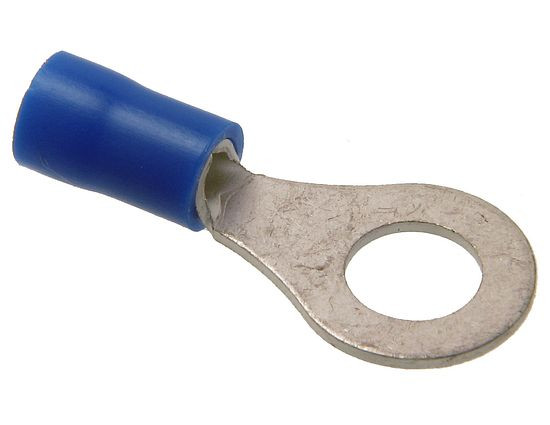

M6/2.5 IZ IMP Ring terminal

Symbol Micros: ZS06oi

32842

ZS06oi

Contractor Symbol:

Case : Rys.ZS06oi

Datasheet

Technical drawing Add to favourites

blue, insulated, M6, overall length: 28mm, wire range: 1.5~2.5mm2; contact material: copper; insulator material: PVC, eqiv. BM90231, ST-083/B, ZS RV2-6

Parameters

Wire width:	1~2.5mm2
Connector type:	Ring
Colour:	Blue
Type of connector:	Insulated
Mounting:	Crimped
Contact material:	Copper

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Wire width:	1~2.5mm2
Connector type:	Ring
Colour:	Blue
Type of connector:	Insulated
Mounting:	Crimped
Contact material:	Copper
