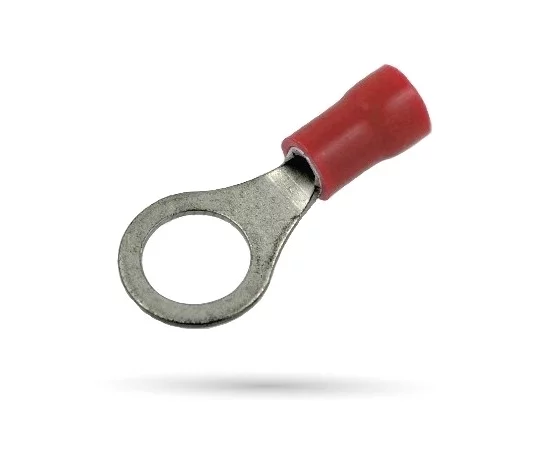

M6/2.5 IZ IMP Ring terminal

Symbol Micros: ZS06oi/1

123172

ZS06oi/1

Contractor Symbol:

Case : Rys.ZS06oi/1

Datasheet

Technical drawing Add to favourites

blue, insulated, M6, wire range: 1.5~2.5mm2; contact material: copper; insulator material: PVC

Parameters

Wire width:	0.5~1.5mm2
Connector type:	Ring
Colour:	Red
Type of connector:	Insulated
Mounting:	Crimped
Contact material:	Copper

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Wire width:	0.5~1.5mm2
Connector type:	Ring
Colour:	Red
Type of connector:	Insulated
Mounting:	Crimped
Contact material:	Copper
