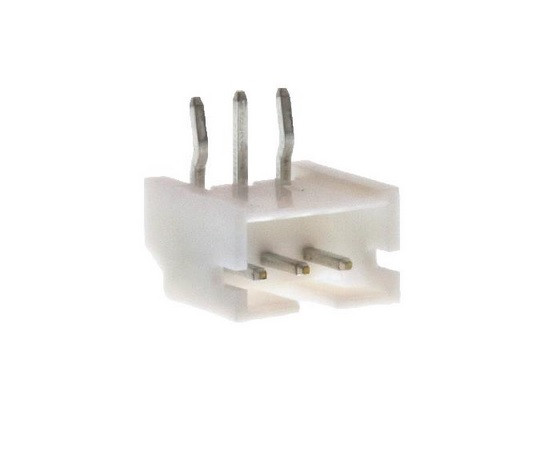

S3B-PH-K-S JST Cable connector

Symbol Micros: ZS3B-PH-K-S

67890

ZS3B-PH-K-S

Contractor Symbol:

Case : Rys.S3B-PH-K-S

Datasheet

Add to favourites

Socket; male; 3pin; pitch: 2mm; THT; 2A; 100V

Parameters

Number of pins:	3
Manufacturer:	JST
Current:	2A
Operating voltage:	100V
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,0mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	3
Manufacturer:	JST
Current:	2A
Operating voltage:	100V
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,0mm
