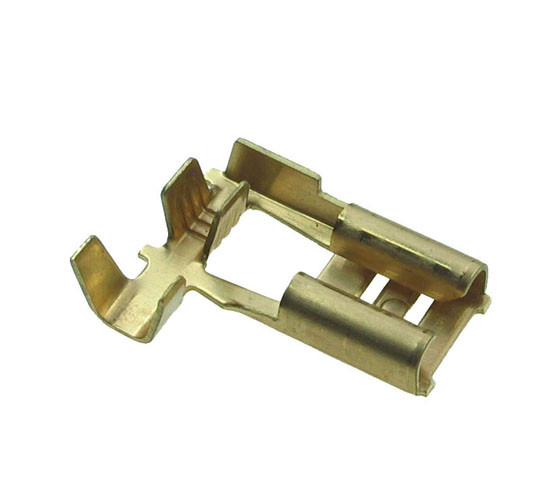

670.08.00.9 IMP Push-on terminal

Symbol Micros: ZS6.3gr

16962

ZS6.3gr

Contractor Symbol:

Case : Rys.ZS6.3gr

Datasheet

Technical drawing Add to favourites

non-insulated; angled; female 6,3x0,8mm; for cable: 1-2.5mm; contact material: brass, on bulk, without hitch

Parameters

Wire width:	1~2.5mm2
Connector type:	Flat
Width [mm]:	6,3mm
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Crimped
Contact material:	Brass

All parameters

Manufacturer:: IMP Manufacturer part number: 683.08.00.9 RoHS Case style: Rys.ZS6.3gr

In stock:

68 pcs.

Quantity of pcs.	5+	20+	100+	500+	3000+
Net price (EUR)	0,1989	0,1008	0,0612	0,0486	0,0442

Add to comparison tool Add inquiry (RFQ)

Packaging:
3000 Quantity (multiple: 1)

- +

Manufacturer:: IMP Manufacturer part number: 6,3/H-2,5 RoHS Case style: Rys.ZS6.3gr

In stock:

1000 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2463	0,1236	0,0737	0,0610	0,0548

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Wire width:	1~2.5mm2
Connector type:	Flat
Width [mm]:	6,3mm
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Crimped
Contact material:	Brass
Thickness:	0,8mm
