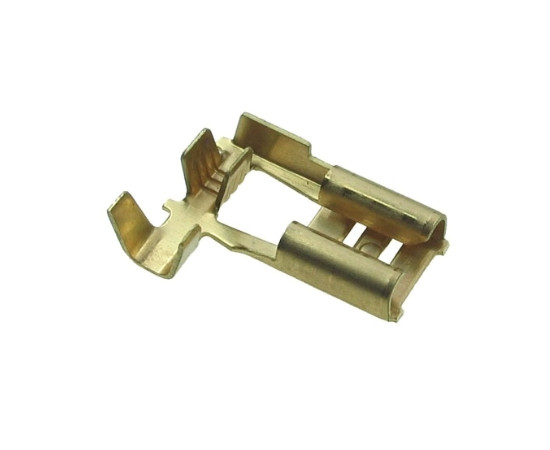

670.08.00.3 IMP Push-on terminal

Symbol Micros: ZS6.3grt

49218

ZS6.3grt

Contractor Symbol:

Case : Rys.ZS6.3grt

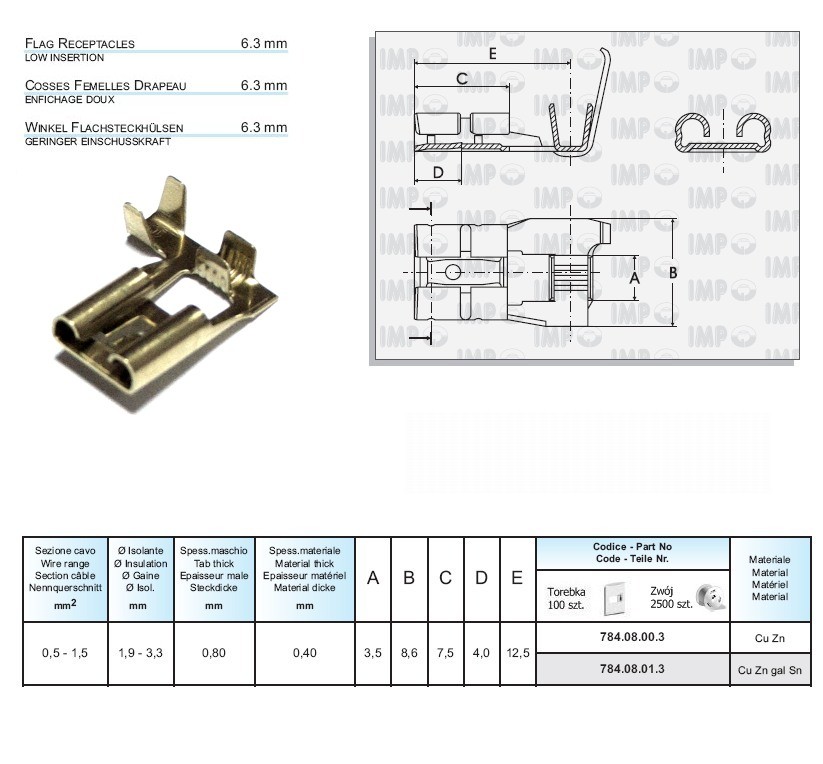

Datasheet

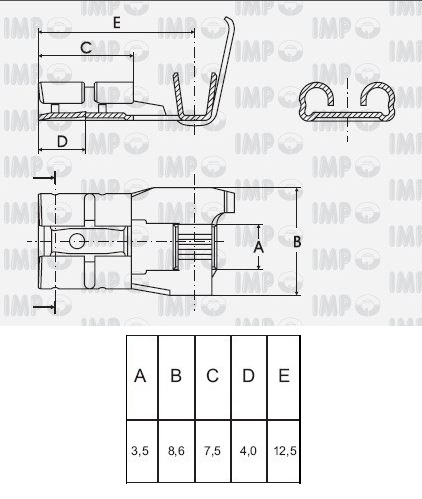

Technical drawing Add to favourites

non-insulated; angled; female 6,3x0,8mm; for cable: 1-2.5mm; contact material: brass, on reel, without hitch

Parameters

Wire width:	1~2.5mm2
Connector type:	Flat
Width:	6,3mm
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Crimped
Contact material:	Brass

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Wire width:	1~2.5mm2
Connector type:	Flat
Width:	6,3mm
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Crimped
Contact material:	Brass
Thickness:	0,8mm
