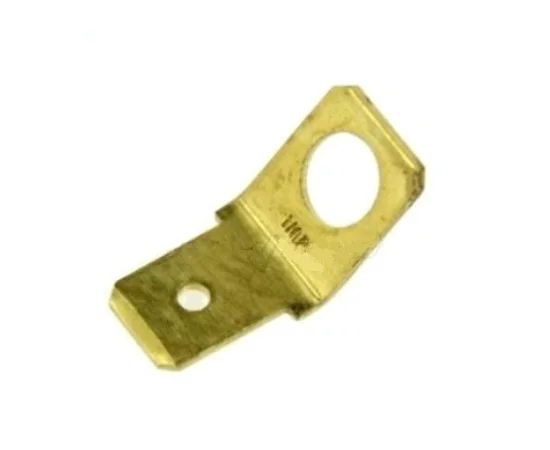

5245.08.00 IMP Flat terminal

Symbol Micros: ZSP45w6.3

116527

ZSP45w6.3

Contractor Symbol:

Case : Rys.ZSP45w6.3

Technical drawing Add to favourites

non-insulated; angled 45; 6,3x0,8mm; contact material: copper

Parameters

Connector type:	Flat
Width [mm]:	6,3mm
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Screw
Contact material:	Brass
Thickness:	0,8mm

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-04-21

Quantity of pcs.: 500

• Parameters

Connector type:	Flat
Width [mm]:	6,3mm
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Screw
Contact material:	Brass
Thickness:	0,8mm
