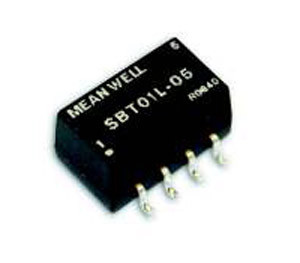

SBTN01L-05N

Symbol Micros: ZT PSBTN01L-05N

503878

ZT PSBTN01L-05N

Contractor Symbol:

Case : Rys.SBT01L

Datasheet

Technical drawing Add to favourites

DC-DC Converters; 1W; 20KHz; 20mA; 5V; 2kV; Vin 4,5V~5,5V; -40°C~100°C; EFF 77%;

Parameters

Input voltage range:	4,5V ~ 5,5V
Output current [A]:	20mA
Output voltage range [V]:	5V
Efficiency:	77%
Power:	1W
Input voltage:	5V
Output voltage [V]:	5V

All parameters

Manufacturer:: MEAN WELL Manufacturer part number: SBTN01L-05N RoHS Case style: Rys.SBT01L Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,9312	3,4946	3,2313	3,1020	3,0234

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: MEAN WELL Manufacturer part number: SBTN01L-05N Case style: Rys.SBT01L

External warehouse:

40 pcs.

Quantity of pcs.	1+ (Please wait for the order confirmation)
Net price (EUR)	3,0234

Add to comparison tool Add inquiry (RFQ)

Packaging:
1

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Input voltage range:	4,5V ~ 5,5V
Output current [A]:	20mA
Output voltage range [V]:	5V
Efficiency:	77%
Power:	1W
Input voltage:	5V
Output voltage [V]:	5V
Insulation breakdown voltage:	2000V
