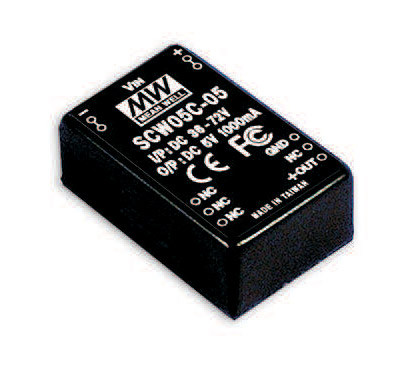

SCW05C-05 Mean Well

Symbol Micros: ZT PSCW05C-05

93375

ZT PSCW05C-05

Contractor Symbol:

Case : Rys.SCW05

Datasheet

Technical drawing Add to favourites

DC-DC Converte; Isolated; Regulated; Single Output; 5W; 1A; 5V; 1kV; 36V~72V; -40°C~71°C; EFF 77%;

Parameters

Output current [A]:	1A
Input voltage range:	36V~72V
Output current 1:	1000mA
Input voltage:	54V
Output voltage range [V]:	5V
Efficiency:	77%
Power:	5W

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Output current [A]:	1A
Input voltage range:	36V~72V
Output current 1:	1000mA
Input voltage:	54V
Output voltage range [V]:	5V
Efficiency:	77%
Power:	5W
Output voltage [V]:	5V
Secondary voltage 1:	5V
Insulation breakdown voltage:	1000V
