SCWN06A-05

Symbol Micros: ZT PSCWN06A-05

338880

ZT PSCWN06A-05

Contractor Symbol:

Case : Rys.SCWN

Datasheet

Add to favourites

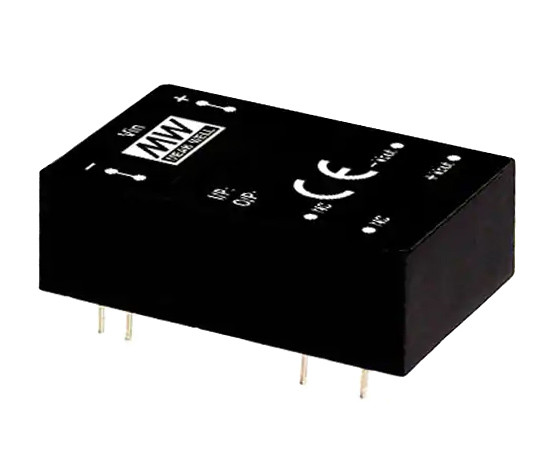

DC-DC Converte; Isolated; Regulated; Single Output; 5W; 1A; 5V; 3kV; 9V~18V; -40°C~90°C; EFF 81%; Substitute: SCW05A-05;

Parameters

Output current [A]:	6A
Input voltage range:	9V~18V
Output current 1:	6A
Input voltage:	13,5V
Output voltage range [V]:	5V
Efficiency:	81%
Power:	5W

All parameters

Manufacturer:: MEAN WELL Manufacturer part number: SCWN06A-05 RoHS Case style: Rys.SCWN Datasheet

In stock:

4 pcs.

Quantity of pcs.	1+	4+	8+	20+	40+
Net price (EUR)	10,0234	9,3982	9,2084	9,0370	8,9490

Add to comparison tool Add inquiry (RFQ)

Packaging:
4 Quantity (multiple: 1)

- +

• Parameters

Output current [A]:	6A
Input voltage range:	9V~18V
Output current 1:	6A
Input voltage:	13,5V
Output voltage range [V]:	5V
Efficiency:	81%
Power:	5W
Output voltage [V]:	5V
Secondary voltage 1:	5V
Insulation breakdown voltage:	3000V
