Pluggable terminal blocks 5.00/5.08mm (results: 654)
| Product | Cart |
Manufacturer
|
Colour
|
Terminal pitch [mm]
|
Height [mm]
|
Number of pins
|
|
|---|---|---|---|---|---|---|---|
|
T8EDGRC-5.0-03P-11-01AH DEGSON Terminal block
8EDGRC-5.0/03 DEGSON, 3 poles; pitch: 5,00mm; height 8.4mm; 300V; 15A; angled, PCB type, PA66, UL94V-0 equivalent: WAGO 231-43X, DINKLE 0135-11, DECA ME730-500
|
|||||||
T8EDGRC-5.0/03
|
DEGSON | Grey | 5,0mm | 8,4mm | 3 | ||
|
|
Item available on a request
|
||||||
|
CIM030P1 SAURO Terminal block
3 poles; pitch: 5.0mm; height 12 mm; green color, 300V; 16A; straight, closed; operating temperature: -40°C ÷ 105°C
|
|||||||
Rys.CIM030P1
|
SAURO | Green | 5,0mm | 12mm | 3 | ||
|
|
Item available on a request
|
||||||
|
XY2500F-B(5.08)-06P brass cage (black) XINYA Terminal block
6 poles; pitch: 5.08mm; height 15mm; black colour; clamp:phosphor bronze; nickel; 300V; 15A; 28-12AWG; straigth, mates with TLPH 5.08mm wire cage: brass; nickel plated; screw: steel; znic plated; equivalent: MSTB 2,5/ 5-ST-5,08, 1757048, 2EDGK-5.08/05, TBW-5-5P/GN, TBW-5.08-K-5P
|
|||||||
Rys.TLPS300v-06p-BC
|
XINYA | Black | 5,08mm | 15mm | 6 | ||
|
|
Item available on a request
|
||||||
|
XY2500F-B(5.08)-07P brass cage XINYA Terminal block
7 poles; pitch: 5.08mm; height 15mm; green colour; clamp:phosphor bronze; nickel; 300V; 15A; 28-12AWG; straigth, mates with TLPH 5.08mm wire cage: brass; nickel plated; screw: steel; znic plated; equivalent: MSTB 2,5/ 7-ST-5,08, 1757064, TBW-5-7P/GN, 2EDGK-5.08/07, TBW-5.08-K-7P
|
|||||||
Rys.TLPS300v-07p-BC
|
XINYA | Green | 5,08mm | 15mm | 7 | ||
|
|
Item available on a request
|
||||||
|
XY2500F-B(5.08)-08P brass cage XINYA Terminal block
8 poles; pitch: 5.08mm; height 15mm; green colour; clamp:phosphor bronze; nickel; 300V; 15A; 28-12AWG; straigth, mates with TLPH 5.08mm wire cage: brass; nickel plated; screw: steel; znic plated; equivalent: MSTB 2,5/ 8-ST-5,08, 1757077, TBW-5-8P/GN, 2EDGK-5.08/08, TBW-5.08-K-8P
|
|||||||
Rys.TLPS300v-08p-BC
|
|||||||
|
|
Item available on a request
|
XINYA | Green | 5,08mm | 15mm | 8 | |
|
|
Item in delivery
Estimated time: 2026-11-01
Quantity of pieces: 1200
|
||||||
|
XY2500F-BV(5.08)-02P XINYA Terminal block
2 poles; pitch: 5.08mm; height 25.8mm; green colour; clamp:phosphor bronze; tin, 300V; 15A; 28-12AWG; angled, mates with TLPH 5.08mm wire cage: brass; nickel plated; screw: steel; znic plated; equivalent: MVSTBR 2,5/ 2-ST-5,08, 1792249, 2EDGKA-5.08/02
|
|||||||
Rys.TLPS300r-02p
|
XINYA | Green | 5,08mm | 25,8mm | 2 | ||
|
|
Item available on a request
|
||||||
|
XY2500F-BV(5.08)-04P XINYA Terminal block
4 poles; pitch: 5.08mm; height 25.8mm; green colour; clamp:phosphor bronze; tin, 300V; 15A; 28-12AWG; angled, mates with TLPH 5.08mm wire cage: brass; nickel plated; screw: steel; znic plated; equivalent: MVSTBR 2,5/ 4-ST-5,08, 1792265, 2EDGKA-5.08/04
|
|||||||
Rys.TLPS300r-04p
|
XINYA | Green | 5,08mm | 25,8mm | 4 | ||
|
|
Item available on a request
|
||||||
|
2EGTKA-5.08-05P-14-1000 GOLTEN Terminal block
5 poles; pitch: 5.08mm; height 26.2mm; green colour; clamp:phosphor bronze; tin, 300V; 15A; 28-12AWG; angled, mates with TLPH 5.08mm wire cage: brass; nickel plated; screw: steel; znic plated; equivalent: MVSTBR 2,5/ 5-ST-5,08, 1792278, 2EDGKA-5.08/05
|
|||||||
Rys.TLPS300r-05p-GT
|
|||||||
|
|
Item available on a request
|
GOLTEN | Green | 5,08mm | 26,2mm | 5 | |
|
|
Item in delivery
Estimated time: 2026-11-15
Quantity of pieces: 680
|
||||||
|
|
Item in delivery
Estimated time: 2026-12-20
Quantity of pieces: 1280
|
||||||
|
2EGTKB-5.08-04P-14-1000 GOLTEN Terminal block
4 poles; pitch: 5.08mm; height 26.2mm; green colour; clamp:phosphor bronze; tin, 320V; 10A; 28-12AWG; angled, mates with TLPH 5.08mm wire cage: brass; nickel plated; screw: steel; znic plated; equivalent: MVSTBW 2,5/ 4-ST-5,08; 1792773; 2EDGKB-5.08-04P
|
|||||||
Rys.TLPS300rl-04p-GT
|
GOLTEN | Green | 5,08mm | 26,2mm | 4 | ||
|
|
Item available on a request
|
||||||
|
15EGTK-5.08-03P-14-00AH GOLTEN Terminal block
3 poles; pitch: 5.08mm; height 11.3mm; green colour; clamp:phosphor bronze; tin, 300V; 8A; 28-16AWG; screw: steel; znic plated
|
|||||||
Rys.TLPS310v-03p-GT
|
GOLTEN | Green | 5,08mm | 11,3mm | 3 | ||
|
|
Item available on a request
|
||||||
|
15EGTVC-5.08-03P-14-00AH GOLTEN Terminal block
3 poles; pitch: 5.08mm; height 9.2mm; green colour; close, 300V; 8A; straigth solder pin: brass; tin plated;
|
|||||||
|
Rys.TLPHC310v-03p-GT
|
GOLTEN | Green | 5,08mm | 9,20mm | 3 | ||
|
|
Item available on a request
|
||||||
|
2EGTB-5.08-04P-14-00AH GOLTEN Terminal block
4 poles; pitch: 5.08mm; height 19.2mm; green colour; clamp:phosphor bronze; tin, 320V; 20A; 28-12AWG; straigth, mates with TLPH 5.08mm wire cage: brass; nickel plated; screw: steel; znic plated; equivalent: ICV 2,5/ 4-G-5,08; 1785968; 2EDGB-5.08-04P
|
|||||||
Rys.TLPS305v-04p-GT
|
GOLTEN | Green | 5,08mm | 19,2mm | 4 | ||
|
|
Item available on a request
|
||||||
|
XY2500F-L(5.08)-02P XINYA Terminal block
2 poles; pitch: 5.08mm; height 25.6mm; green colour; clamp type, 300V; 10A; 26-12AWG; straigth, mates with TLPH 5.08mm clamp: phosphor bronze; nickel plated; clamping: stainless steel; equivalent: FKC 2,5/ 2-ST-5,08; 1873058; 2EDGKD-5.08-02P
|
|||||||
Rys.TLPSZ300v-02p
|
XINYA | Green | 5,08mm | 25,6mm | 2 | ||
|
|
Item available on a request
|
||||||
|
2EGTKD-5.08-06P-14-00AH GOLTEN Terminal block
6 poles; pitch: 5.08mm; height 23.7mm; green colour; clamp type, 300V; 10A; 26-12AWG; straigth, mates with TLPH 5.08mm clamp: phosphor bronze; nickel plated; clamping: stainless steel; equivalent: FKC 2,5/ 6-ST-5,08; 1873090; 2EDGKD-5.08-06P
|
|||||||
Rys.TLPSZ300v-06p-GT
|
GOLTEN | Green | 5,08mm | 23,7mm | 6 | ||
|
|
Item available on a request
|
||||||
|
XY2500F-BS(5.08)-02P XINYA Terminal block
2 poles; pitch: 5.08mm; height 15,0mm; green colour; with sided screw, 300V; 12A; 18-12AWG; straigth, mates with TLPH 5.08mm cage:steel;zinc plated;screw:steel;znic plated;clamp:phosphore bronze;nickel, equivalent: MSTB 2,5/ 2-STF-5,08; 1777989; 2EDGKM-5.08-02P
|
|||||||
Rys.TLPSW300v-02p
|
XINYA | Green | 5,08mm | 15mm | 2 | ||
|
|
Item available on a request
|
||||||
|
2EGTKM-5.08-03P-14-00AH GOLTEN Terminal block
3 poles; pitch: 5.08mm; height 15.1mm; green colour; with sided screw, 300V; 15A; 28-12AWG; straigth, mates with TLPH 5.08mm cage:brass;Ni plated;zinc plated;screw:steel;znic plated;clamp:phosphore bronze; equivalent: MSTB 2,5/ 3-STF-5,08; 1777992; 2EDGKM-5.08-03P
|
|||||||
Rys.TLPSW300v-03p-GT
|
GOLTEN | Green | 5,08mm | 15,1mm | 3 | ||
|
|
Item available on a request
|
||||||
|
2EGTV-5.08-06P-14-00 GOLTEN Terminal block
6 poles; pitch: 5.08mm; height 12.1mm; green colour; open, 300V; 15A; straigth, mates with TLPS 5.08mm solder pin: brass; tin plated; equivalent: MSTBV 2,5/ 6-G-5,08; 1758050; 2EDGV-5.08-06P
|
|||||||
Rys.TLPH300v-06p-GT
|
GOLTEN | Green | 5,08mm | 12,1mm | 6 | ||
|
|
Item available on a request
|
||||||
|
XY2500V-C(5.08)-10P XINYA Terminal block
10 poles; pitch: 5.08mm; height 12mm; green colour; open, 300V; 15A; straigth, mates with TLPS 5.08mm solder pin: brass; tin plated; equivalent: MSTBV 2,5/10-G-5,08; 1758092; 2EDGV-5.08-10P
|
|||||||
Rys.TLPH300v-10p
|
XINYA | Green | 5,08mm | 12mm | 10 | ||
|
|
Item available on a request
|
||||||
|
XY2500V-C(5.08)-12P XINYA Terminal block
12 poles; pitch: 5.08mm; height 12mm; green colour; open, 300V; 15A; straigth, mates with TLPS 5.08mm solder pin: brass; tin plated; equivalent: MSTBV 2,5/12-G-5,08; 1758115; 2EDGV-5.08-12P
|
|||||||
Rys.TLPH300v-12p
|
XINYA | Green | 5,08mm | 12mm | 12 | ||
|
|
Item available on a request
|
||||||
|
XY2500R-C(5.08)-04P XINYA Terminal block
4 poles; pitch: 5.08mm; height 8.4mm; green colour; open, 300V; 12A; angled, mates with TLPS 5.08mm solder pin: brass; tin plated; equivalent: MSTB 2,5/ 4-G-5,08; 1759033; 2EDGR-5.08-04P; TBG-5-KB-4P/GN
|
|||||||
Rys.TLPH300r-04p
|
XINYA | Green | 5,08mm | 8,4mm | 4 | ||
|
|
Item available on a request
|
||||||
|
XY2500V-D(5.08)-04P (black) XINYA Terminal block
4 poles; pitch: 5.08mm; height 12mm; black colour; close, 300V; 15A; straigth, mates with TLPS 5.08mm solder pin: brass; tin plated; equivalent: MSTBVA 2.5/ 4-G-5.08; 1755752; 2EDGVC-5.08-04P
|
|||||||

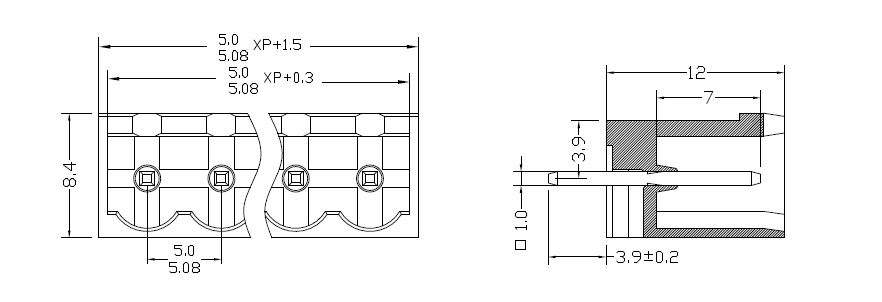

Rys.TLPHC300v-04p
|
XINYA | Black | 5,08mm | 12mm | 4 | ||
|
|
Item available on a request
|
||||||
|

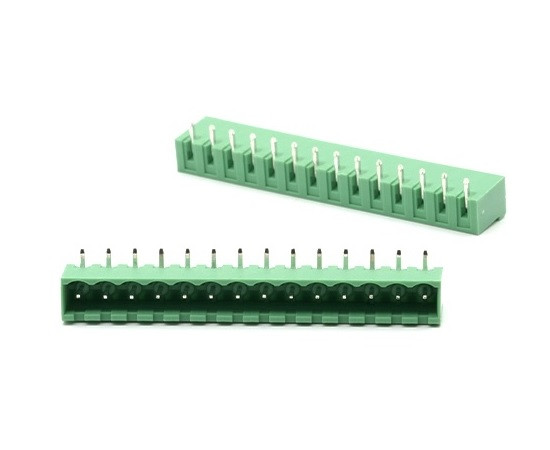

2EGTRC-5.08-14P-14-00 GOLTEN Terminal block
14 poles; pitch: 5.08mm; height 8.2mm; green colour; close, 300V; 15A; angled solder pin: brass; tin plated; equivalent: MSTBA 2,5/14-G-5,08; 1757365; 2EDGRC-5.08-14P
|
|||||||
Rys.TLPHC300r-14p-GT
|
GOLTEN | Green | 5,08mm | 8,2mm | 14 | ||
|
|
Item available on a request
|
||||||
|
2EGTKR-5.08-02P-14-00AH GOLTEN Terminal block
wire cage: brass;tin plated; solder pin: brass; tin plated; equivalent: IC 2,5/ 2-ST-5,08; 1786174; 2EDGKR-5.08-02P
|
|||||||
Rys.TLPHS300v-02p-GT
|
|||||||
|
|
Item available on a request
|
GOLTEN | Green | 5,08mm | 15,1mm | 2 | |
|
|
Item in delivery
Estimated time: 2026-11-15
Quantity of pieces: 800
|
||||||
|
2EGTKR-5.08-04P-14-00AH GOLTEN Terminal block
wire cage: brass;tin plated; solder pin: brass; tin plated; equivalent: IC 2,5/ 4-ST-5,08; 1786190; 2EDGKR-5.08-04P
|
|||||||
Rys.TLPHS300v-04p-GT
|
|||||||
|
|
Item available on a request
|
GOLTEN | Green | 5,08mm | 15,1mm | 4 | |
|
|
Item in delivery
Estimated time: 2026-11-15
Quantity of pieces: 600
|
||||||
|
2EGTKR-5.08-10P-14-00AH GOLTEN Terminal block
wire cage: brass;tin plated; solder pin: brass; tin plated; equivalent: IC 2,5/10-ST-5,08; 1786255; 2EDGKR-5.08-10P
|
|||||||
Rys.TLPHS300v-10p-GT
|
GOLTEN | Green | 5,08mm | 15,1mm | 10 | ||
|
|
Item available on a request
|
||||||
|
2EGTVM-5.08-02P-14-00AH GOLTEN Terminal block
solder pin: brass; tin plated; equivalent: MSTBV 2,5/ 2-GF-5,08; 1777073, 2EDGVM-5.08-02P
|
|||||||
Rys.TLPHCW300v-02p-GT
|
GOLTEN | Green | 5,08mm | 12,1mm | 2 | ||
|
|
Item available on a request
|
||||||
|
2EGTVM-5.08-05P-14-00AH GOLTEN Terminal block
solder pin: brass; tin plated; equivalent: MSTBV 2,5/ 5-GF-5,08; 1777109, 2EDGVM-5.08-05P
|
|||||||
|
Rys.TLPHCW300v-05p-GT
|
GOLTEN | Green | 5,08mm | 12,1mm | 5 | ||
|
|
Item available on a request
|
||||||
|
2EGTRM-5.08-02P-14-00AH GOLTEN Terminal block
solder pin: brass; tin plated; equivalent: MSTB 2,5/ 2-GF-5,08; 1776508; 2EDGRM-5.08-02P
|
|||||||
Rys.TLPHCW300r-02p-GT
|
GOLTEN | Green | 5,08mm | 8,7mm | 2 | ||
|
|
Item available on a request
|
||||||
|
2EGTRM-5.08-04P-14-100AH GOLTEN Terminal block
4 poles; pitch: 5.08mm; height:8.2mm; closed, 300V; 15A solder pin: brass; tin plated; equivalent: MSTB 2,5/ 4-GF-5,08; 1776524;
|
|||||||
Rys.TLPHCW300r-04p-GT
|
GOLTEN | Green | 5,08mm | 8,7mm | 4 | ||
|
|
Item available on a request
|
||||||
|
2EGTKBM-5.08-04P-14-00AH GOLTEN Terminal block
4 poles; pitch:.5.08mm; height. 26.2mm; green color, 300V; 15A equivalent: MVSTBW 2,5/ 4-STF-5,08; 1834929; 2EDGKBM-5.08-04P
|
|||||||
|
Rys.TLPSW300rl-04p-GT
|
GOLTEN | Green | 5,08mm | 26,2mm | 4 | ||
|
|
Item available on a request
|
||||||
