Switches from Schurter

2020-11-20

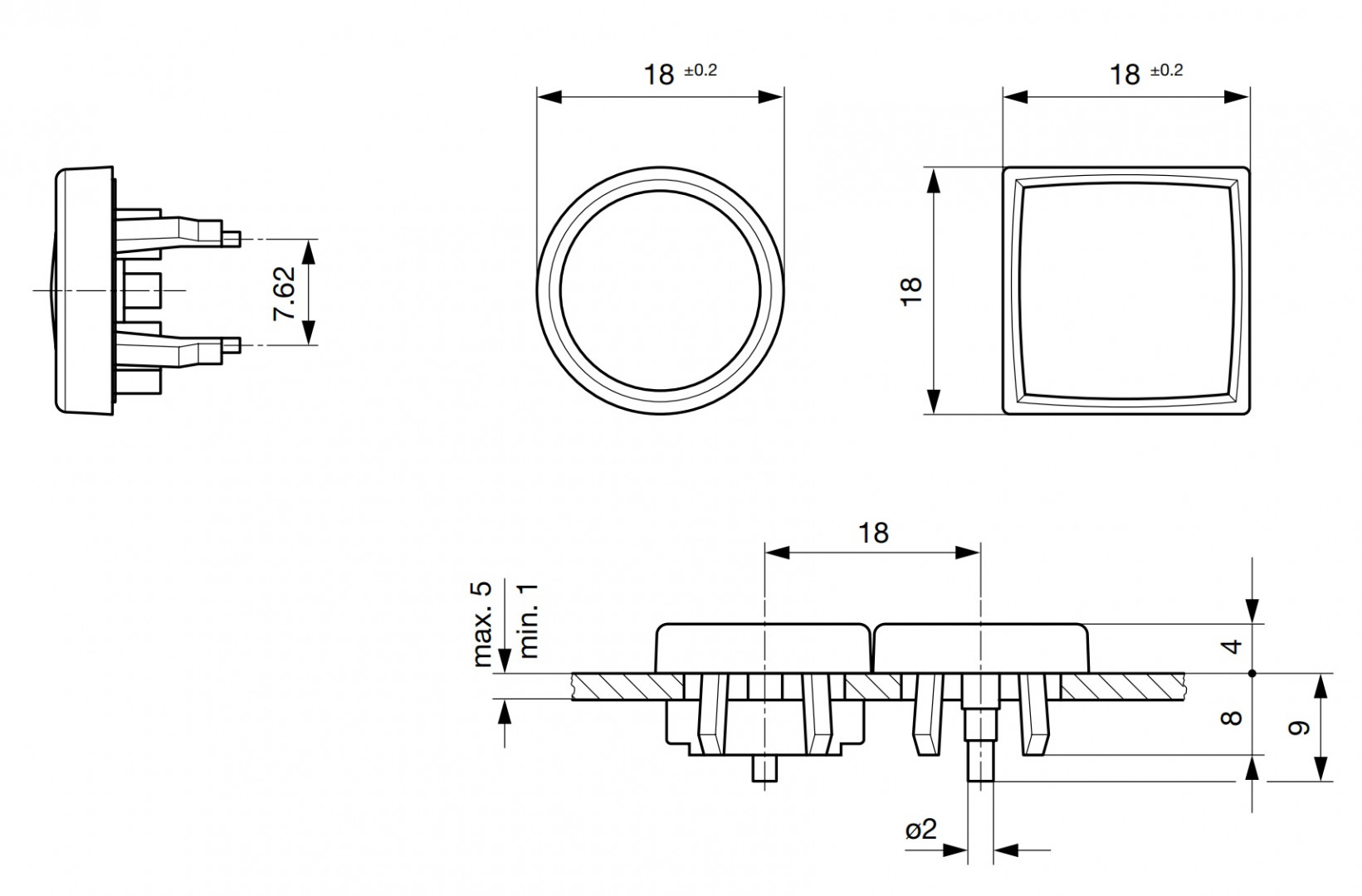

Schurter switches are designed for the most demanding users looking for uncompromising solutions. They can withstand up to 5 million switching on and require very little force to be switched on. Mounted on the panel, they protrude only 4mm, offering water and dust protection class IP65 after purchasing a special gasket PRZ 0098. 9201. Each of the buttons is equipped with terminals that allow for trouble-free soldering of cables.

Switching voltage

5 - 48 VDC

Switching current

max 125mA

Contact resistance

<50mOhm

Lifetime

>1mln actuations

Insulation resistance

>100MOhm

Duration of Bounce

typ. 0,1 ms

Actuating force

2-4N

Operating temperature

-25 - 60 °C

Contact material

silver

Contacts configurations

NO, monostable





Button shape

Body colour

Button colour

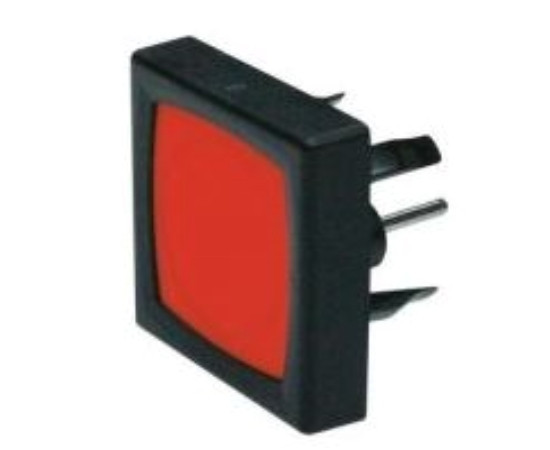

PRZ 1241.1100.7093

square

black

red

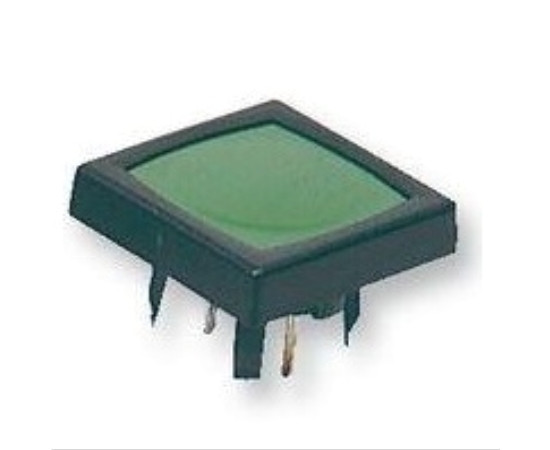

PRZ 1241.1100.7095

square

black

green

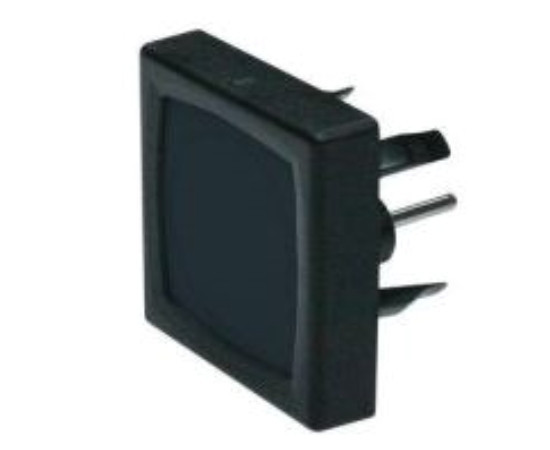

PRZ 1241.1100.7097

square

black

black

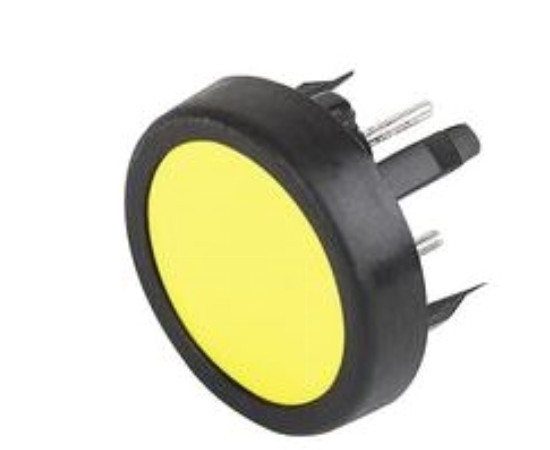

PRZ 1241.1104.7091

round

black

yellow

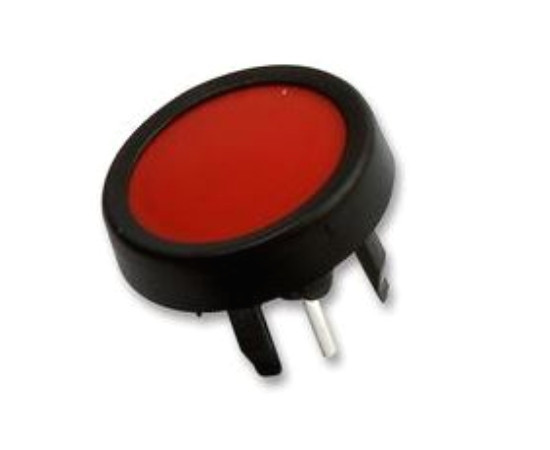

PRZ 1241.1104.7093

round

black

red

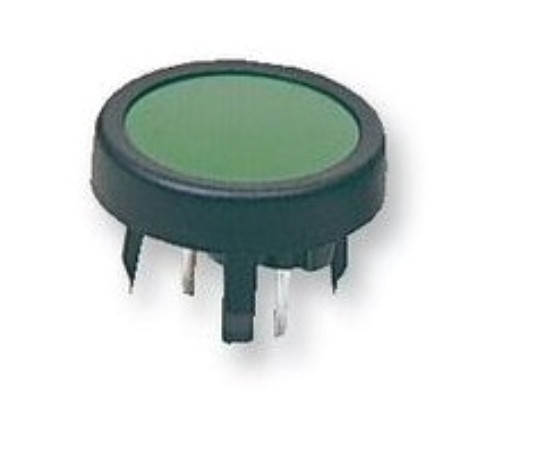

PRZ 1241.1104.7095

round

black

green
