The Role of MOSFET Transistors 2N7002K and BSS123 in Modern Electronic Circuits

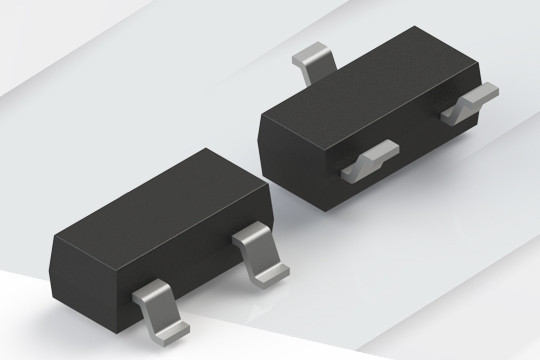

BSS123 and 2N7002K are enhancement-mode N-channel MOSFET transistors designed for use in low-voltage, low-power applications. They feature a low gate threshold voltage, which allows for direct control by logic circuits operating at 5 V. Both transistors offer relatively low on-state resistance at an appropriate gate voltage, helping to reduce power loss during conduction. Thanks to their switching characteristics and compact SOT-23 package, they are widely used in consumer electronics and automation systems.

Key Features:

1. Transistor Type: Both transistors are N-channel MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) with enhancement-mode operation. This means they exhibit low resistance when turned on, allowing for efficient signal switching.
2. Use in Switching Circuits: Both BSS123 and 2N7002K are commonly used in switching applications, where they serve as electronic switches in logic and control systems.
3. Low Gate Threshold Voltage: The low gate threshold voltage of these transistors enables direct interfacing with logic-level signals.
4. Low On-State Resistance (RDS(on)): These transistors feature a sufficiently low RDS(on) to support basic switching applications, especially when the gate voltage is 10 V.
5. Low Power Operation: BSS123 and 2N7002K are designed for low-power operation, making them ideal for systems with minimal energy requirements.

Applications:

• Electronic switches: Widely used in digital signal switching, LED control, and low-power device control.
• Logic control circuits: Due to their low gate threshold voltage, they are suitable for driving logic circuits, including microcontrollers and FPGAs.
• Overvoltage protection: Also used in protection circuits, where they help control current flow in response to input voltage conditions.
• Relay and motor control modules: Employed in circuits for controlling small motors and relays, especially in home and industrial automation systems.
• Switch-mode power supplies: Their efficiency in low-voltage operation makes them suitable for use in SMPS and other power conversion applications.

If you want to check current stock levels and prices, click on the product symbols.
