ISM modules (results: 226)
| Product | Cart |
Type
|
Frequency
|
Transmission speed
|
Supply voltage
|
Operating temperature (range)
|
Interface
|
Transmitter output power
|
Receiver sensivity
|
Modulation
|
Antenna
|
Dimensions
|
Mounting
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVB Demo Board + COB Hope RF
Evaluation Board for RF module Hope RF end of life; RF-EVB; the replacement is Hopeduino DK
|
||||||||||||||
RF EVB
|
Evaluation Board | 2,4kbps | 3,6V~5,5V | UART | 80x60x36mm | |||||||||
|
|
Item available on a request
|
|||||||||||||
|
RX-4MM3/F RF Module 433.93MHz AUREL
433.92MHz -114dBm 2.7÷3.3V
|
||||||||||||||
Rys.RX-4MM3/F
|
Receiver | 433,92MHz | 2,7V~3,3V | -20°C ~ 80°C | -113dBm | OOK | 36,5x17,5x5mm | DIP | ||||||
|
|
Item available on a request
|
|||||||||||||
|
RX-4MM5++/F RF Module 433.92MHz AUREL
433.92MHz -113dBm 4.5÷5.5V
|
||||||||||||||
Rys.RX-4MM5++/F
|
Receiver | 433,92MHz | 4,5V~5,5V | -20°C ~ 80°C | -113dBm | OOK | 36,5x21,5x4,5mm | DIP | ||||||
|
|
Item available on a request
|
|||||||||||||
|
RX-8ML5++/F RF Module 868.3MHz AUREL
868.3MHz -113dBm 4.7÷5.5V
|
||||||||||||||
Rys.RX-8ML5++/F
|
Receiver | 868,3MHz | 4,7V~5,5V | -20°C ~ 80°C | -113dBm | OOK | 36,8x19x4,2mm | DIP | ||||||
|
|
Item available on a request
|
|||||||||||||
|

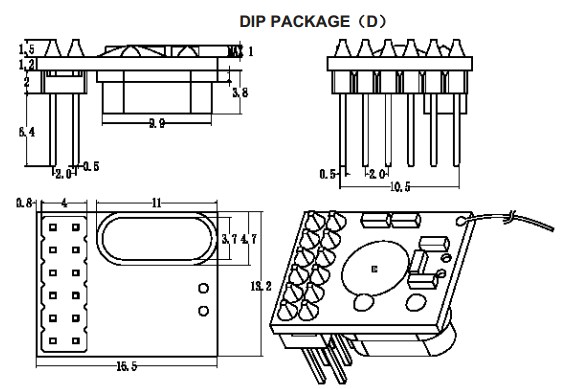

RFM01-868-D wireless FSK receiver module, DIP HOPE MICROELECTRONICS
Moduł: RF | odbiornik FM | FSK | 868MHz | SPI | -109dBm | 2,2÷5,4VDC 868MHz 2.2-5.4V Suggested replacement: RFM219SW... RFM01-868D RFM01/868D; EOL: RFM01-868D;
|
||||||||||||||
RF RFM01-868-D
|
||||||||||||||
|
|
Item available on a request
|
|||||||||||||
|
RFM217-868S1 HopeRF
868MHz 1.8÷3.6V -108dBm
|
||||||||||||||
RF RFM217-xxxS1
|
||||||||||||||
|
|
Item available on a request
|
|||||||||||||
|
RFM219SW-433S1 HopeRF
433MHz 1.8÷3.6V -109dBm RX module OOK & (G)FSK receiver; ZAMIENNIK ZA RFM01-433-S2; module based on CMT2219AW-EQR IC;
|
||||||||||||||
RF RFM219SW-xxxS1
|
||||||||||||||
|
|
Item available on a request
|
|||||||||||||
|
RFM22B-868-S2 FSK transceiver SMD HOPE
868MHz -121dBm 1.8-3.6V Reel RFM22B-868S2R; Replacement for RFM22-868S2; Recommended RFM69HW-868S2 for new design;
|
||||||||||||||
RF RFM22B-xxxS2
|
||||||||||||||
|
|
Item available on a request
|
|||||||||||||
|

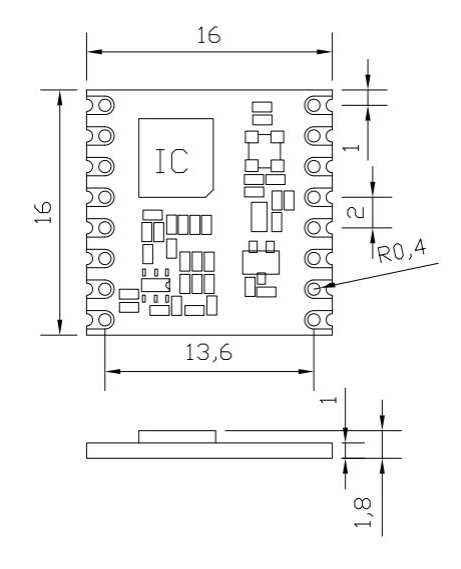

RFM69W-868S2 ISM Transceiver Module
868MHz 2.4-3.6V +13dBm -120dBm RFM12B-868S2, RFM23B-868S2 ; Dimensions:16x16mm
|
||||||||||||||
Rys.RFM69W
|
||||||||||||||
|
|
Item available on a request
|
|||||||||||||
|
RFM210LH-433D-D
receiver module DIP 315MHz 3.6-5.5V -108dBm ASK/OOK
|
||||||||||||||
Rys.RFM210LHxxxD
|
||||||||||||||
|
|
Item available on a request
|
|||||||||||||
|
E01-2G4M27D EBYTE
Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; SMA connector; Tx 27dBm; Si -99dBm; 5km; 2,5V~5,5V; -40°C ~ 85°C; 33,4x18x12,8mm; Pin header 2x4;
|
||||||||||||||
Rys.EB-33.4x18x12.8
|
Radio module | 2,525GHz | 2Mbps | 2,5V ~ 5,5V | -40°C ~ 85°C | SPI | 27dBm | -99dBm | GFSK | Zewnętrzna (Złącze SMA) | 33,4x18x12,8mm | THT | ||
|
|
Item available on a request
|
|||||||||||||
|
RC-CC1101-SPI-868 (replacement for RXQ4-868)
Multichannel Radio Transceiver based on the CC1101 chip; 868MHz; Po 10dBm; Si -112dBm; 500kbps max; Is Tx/Rx 30mA/18mA; 1,8V~3,6V; -20°C ~ 70°C;
|
||||||||||||||
Rys.RC-21.50x15.60
|
Transceiver | 868MHz | 500kbps | 1,8V~3,6V | -20°C ~ 70°C | SPI | 10dBm | -112dBm | None | 21,5x15,6mm | THT | |||
|
|
Item available on a request
|
|||||||||||||
|
RCRX1-434
ASK/OOK Superheterodyne Receiver; 433,92MHz; Si -112dBm; 10kbps; BW ±0,3MHz; Is 3,5mA; 2V~5,5V; -20°C ~ 80°C;
|
||||||||||||||
Rys.RC-38.00x12.00
|
ASK/OOK Receiver | 433,92MHz | 10kbps | 2V~5,5V | -20°C ~ 80°C | -112dBm | ASK; OOK | External | 38x12mm | THT | ||||
|
|
Item available on a request
|
|||||||||||||
|
RS868v3
Medium Range Transparent RF Modem w/Built-in microcontroller; 868MHz; Po 20dBm; Si -120dBm; 115,2kbps; Is Tx/Rx 34mA/16mA; 5V; -20°C ~ 70°C;
|
||||||||||||||
Rys.RS868v3
|
Modem | 868MHz | 115,2kbps | 5V | -20°C ~ 70°C | RS-485 | 20dBm | -120dBm | FSK | External | 29,5x54mm | SMD | ||
|
|
Item available on a request
|
|||||||||||||
|
RFM02-868-D FM transmitter DIP HOPE
868MHz 2.2-5.4V Replacement: RFM68CW; RFM02/868D; RFM02-868D; EOL: RFM02-868-D;
|
||||||||||||||
RF RFM02-xxxD
|
||||||||||||||
|
|
Item available on a request
|
|||||||||||||
|
RFM220LS-433D-B-FS
Receiver; 433MHz; 5kbps; 3V~5,5V; -40°C~85°C; -108dBm; OOK/ASK; 30x14,7x6,1mm; DIP
|
||||||||||||||
|
RF RFM220LS-433D-B-FS
|
Receiver | 433,92MHz | 5kbps | 3V~5,5V | -40°C ~ 85°C | -108dBm | ASK; OOK | 30x14,7x6,1mm | DIP | |||||
|
|
Item available on a request
|
|||||||||||||
