ISM modules (results: 205)
| Product | Cart |
Type
|
Frequency
|
Transmission speed
|
Supply voltage
|
Operating temperature (range)
|
Interface
|
Transmitter output power
|
Receiver sensivity
|
Modulation
|
Antenna
|
Dimensions
|
Mounting
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CY55-433.92
ASK/OOK Superheterodyne Receiver; Low Current Consumption; 433,92MHz; Si -106dBm; 2,4kbps max; Is 2,8mA; 2,4V~5,5V; -30°C ~ 85°C; 29,7x10x5mm;
|
|||||||||||||||||||||||||

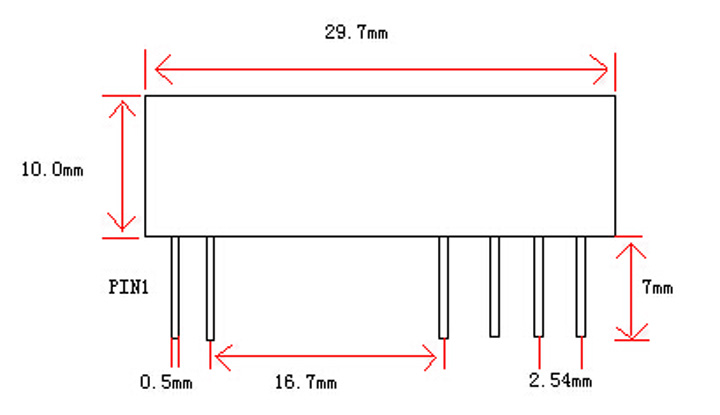

Rys.CY-29.7x10.0
|
In stock:
3 pcs. |
||||||||||||||||||||||||
|
Packaging: 10 Quantity (multiple 1) |
ASK/OOK Receiver | 433,92MHz | 2,4kbps | 2,4V~5,5V | -30°C ~ 85°C | - | N/A | -106dBm | ASK; OOK | External (Antenna pin) | 29,7x10x5mm | THT | ||||||||||||
|
CY89-V1.1-433.92
ASK/OOK Superheterodyne Receiver; SMD; 433,92MHz; Si -110dBm; 4,8kbps max; Is 7mA; 3,6V~5V; -20°C ~ 70°C; 12,5x12,5x2,5mm;
|
|||||||||||||||||||||||||
Rys.CY-12.5x12.5
|
In stock:
3 pcs. |
||||||||||||||||||||||||
|
Packaging: 10/20 Quantity (multiple 1) |
ASK/OOK Receiver | 433,92MHz | 4,8kbps | 3,6V~5V | -20°C ~ 70°C | - | N/A | -110dBm | ASK; OOK | External (RF Pad) | 12,5x12,5x2,5mm | SMD | ||||||||||||
|
CYRM03-433.92
ASK/OOK Superheterodyne Receiver w/Decoder; EV1527 Learning Code; 433,92MHz; Si -110dBm; 2,4kbps max; Is 7,5mA; 3V~5,5V; -20°C ~ 70°C; 27,6x12x5mm;
|
|||||||||||||||||||||||||

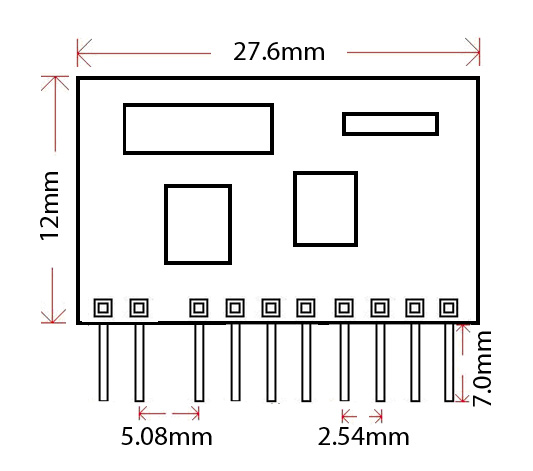

Rys.CY-27.6x12.0
|
In stock:
12 pcs. |
||||||||||||||||||||||||
|
Packaging: 10 Quantity (multiple 1) |
ASK/OOK Receiver | 433,92MHz | 2,4kbps | 3V ~ 5,5V | -20°C ~ 70°C | - | N/A | -110dBm | ASK; OOK | External (Antenna pin) | 27,6x12x5mm | THT | ||||||||||||
|
E01-2G4M13S EBYTE
Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; PCB antenna; Tx 13dBm; Si -98dBm; 800m; 2V~3,6V; -40°C ~ 85°C; 23x14x2,3mm; SMT 8-pad package;
|
|||||||||||||||||||||||||
Rys.EB-23x14x2.3
|
In stock:
10 pcs. |
||||||||||||||||||||||||
|
Packaging: 10 Quantity (multiple 1) |
Radio module | 2,525GHz | 2Mbps | 2V ~ 3,6V | -40°C ~ 85°C | SPI | 13dBm | -98dBm | GFSK | PCB Antenna | 23x14x2,3mm | SMD | ||||||||||||
|
E01-2G4M27D EBYTE
Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; SMA connector; Tx 27dBm; Si -99dBm; 5km; 2,5V~5,5V; -40°C ~ 85°C; 33,4x18x12,8mm; Pin header 2x4;
|
|||||||||||||||||||||||||
Rys.EB-33.4x18x12.8
|
In stock:
1 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Radio module | 2,525GHz | 2Mbps | 2,5V ~ 5,5V | -40°C ~ 85°C | SPI | 27dBm | -99dBm | GFSK | Zewnętrzna (Złącze SMA) | 33,4x18x12,8mm | THT | ||||||||||||
|
In stock:
10 pcs. |
|||||||||||||||||||||||||
|
Packaging: 10 Quantity (multiple 1) |
Radio module | 2,525GHz | 2Mbps | 2,5V ~ 5,5V | -40°C ~ 85°C | SPI | 27dBm | -99dBm | GFSK | Zewnętrzna (Złącze SMA) | 33,4x18x12,8mm | THT | ||||||||||||
|
E01-ML01DP4 EBYTE
Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; PCB antenna; Tx 20dBm; Si -96dBm; 1,8km; 2V~3,6V; -40°C ~ 85°C; 27x15x11,2mm; DIP 8-pin package;
|
|||||||||||||||||||||||||
Rys.EB-27x15x11.2
|
In stock:
8 pcs. |
||||||||||||||||||||||||
|
Packaging: 10 Quantity (multiple 1) |
Radio module | 2,525GHz | 2Mbps | 2V ~ 3,6V | -40°C ~ 85°C | SPI | 20dBm | -96dBm | GFSK | PCB Antenna | 27x15x11,2mm | SMD | ||||||||||||
|
E01-ML01DP5 EBYTE
Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; SMA Connector; Tx 20dBm; Si -96dBm; 2,5km; 2V~3,6V; -40°C ~ 85°C; 33,4x18x12,8mm; DIP 8-pin package;
|
|||||||||||||||||||||||||
|
Rys.EB-33.4x18x12.8
|
In stock:
10 pcs. |
||||||||||||||||||||||||
|
Packaging: 10 Quantity (multiple 1) |
Radio module | 2,525GHz | 2Mbps | 2V ~ 3,6V | -40°C ~ 85°C | SPI | 20dBm | -96dBm | GFSK | External (SMA-K) | 33,4x18x12,8mm | SMD | ||||||||||||
|
E01-ML01S EBYTE
Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; PCB antenna; Po 0dBm; Si -93dBm; 100m; 2V~3,6V; -40°C ~ 85°C; 19x12x1,63mm; SMT 8-pad package;
|
|||||||||||||||||||||||||
Rys.EB-19x12x1.63
|
In stock:
20 pcs. |
||||||||||||||||||||||||
|
Packaging: 10/20 Quantity (multiple 1) |
Radio module | 2,525GHz | 2Mbps | 2V ~ 3,6V | -40°C ~ 85°C | SPI | 0dBm | -93dBm | GFSK | PCB | 19x12x1,63mm | SMD | ||||||||||||
|
E01-ML01SP2 EBYTE
Wireless module based on the Nordic nRF24L01P; 2,4GHz~2,525GHz; SPI; PCB/I-PEX antenna; Po 20dBm; Si -96dBm; 1,5km; 2V~3,6V; -40°C ~ 85°C; 25x12,8x2,1mm; SMT 8-pad package;
|
|||||||||||||||||||||||||
Rys.EB-25x12.8x2.1
|
In stock:
8 pcs. |
||||||||||||||||||||||||
|
Packaging: 10 Quantity (multiple 1) |
Radio module | 2,525GHz | 2Mbps | 2V ~ 3,6V | -40°C ~ 85°C | SPI | 20dBm | -96dBm | GFSK | PCB/IPEX | 25x12,8x2,1mm | SMD | ||||||||||||
|
E01-ML01SP4 EBYTE
Wireless module based on the Nordic nRF24L01P IC; 2,4GHz~2,525GHz; SPI; I-PEX connector; Po 20dBm; Si -96dBm; 2km; 2V~3,6V; -40°C ~ 85°C; 18x14,5x2,4mm; SMT 8-pad package;
|
|||||||||||||||||||||||||
Rys.EB-18x14.5x2.4
|
In stock:
10 pcs. |
||||||||||||||||||||||||
|
Packaging: 10 Quantity (multiple 1) |
Radio module | 2,525GHz | 2Mbps | 2V ~ 3,6V | -40°C ~ 85°C | SPI | 20dBm | -96dBm | GFSK | External (I-PEX Connector | 18x14,5x2,4mm | SMD | ||||||||||||
|
E30-868T20S (E53-T100S2) EBYTE
Wireless module based on the Silabs SI4463 IC; 855MHz~880,5MHz; UART; I-PEX connector; Po 20dBm; Si -121dBm; 2,5km; 2,3V~5,2V; -40°C ~ 85°C; 30x17x3,5mm; SMT 11-pad package;
|
|||||||||||||||||||||||||
Rys.EB-30x17x3.5
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Radio module | 880,5MHz | 25kbps | 2,3V ~ 5,2V | -40°C ~ 85°C | UART | 20dBm | -121dBm | External (I-PEX Connector | 30x17x3,5mm | SMD | |||||||||||||
|
E70-433T14S EBYTE
Wireless module based on the TI CC1310 IC; 425MHz~450,5MHz; UART; I-PEX connector; Po 14dBm; Si -110dBm; 1,5km; 2,2V~3,8V; -40°C ~ 85°C; 26x16x2,4mm; SMT 42-pad package;
|
|||||||||||||||||||||||||
Rys.EB-26x16x2.4
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Radio module | 450,5MHz | 168kbps | 2,2V ~ 3,8V | -40°C ~ 85°C | UART | 14dBm | -110dBm | GFSK | External (I-PEX Connector | 26x16x2,4mm | SMD | ||||||||||||
|
E70-433T14S2 EBYTE
Wireless module based on the TI CC1310 IC; 431MHz~446,5MHz; UART; I-PEX connector; Po 14dBm; Si -108dBm; 1,5km; 2,1V~3,8V; -40°C ~ 85°C; 20x14x2,57mm; SMT 24pad package;
|
|||||||||||||||||||||||||
Rys.EB-20x14x2.57
|
In stock:
6 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Radio module | 446,5MHz | 168kbps | 2,1V ~ 3,8V | -40°C ~ 85°C | UART | 14dBm | -108dBm | External (I-PEX Connector | 20x14x2,57mm | SMD | |||||||||||||
|
E70-900T14S EBYTE
Wireless module based on the TI CC1310 IC; 861MHz~922,5MHz; UART; I-PEX connector; Po 14dBm; Si -110dBm; 1,5km; 2,2V~3,8V; -40°C ~ 85°C; 26x16x2,4mm; SMT 42-pad package;
|
|||||||||||||||||||||||||
Rys.EB-26x16x2.4
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Radio module | 922,5MHz | 168kbps | 2,2V ~ 3,8V | -40°C ~ 85°C | UART | 14dBm | -110dBm | GFSK | External (I-PEX Connector | 26x16x2,4mm | SMD | ||||||||||||
|
RC-CC1101-SPI-434 (replacement for RXQ4-434)
Multichannel Radio Transceiver based on the CC1101 chip; 434MHz; Po 10dBm; Si -112dBm; 500kbps max; Is Tx/Rx 30mA/18mA; 1,8V~3,6V; -20°C ~ 70°C;
|
|||||||||||||||||||||||||
Rys.RC-21.50x15.60
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 50 Quantity (multiple 1) |
Transceiver | 434MHz | 500kbps | 1,8V~3,6V | -20°C ~ 70°C | SPI | 10dBm | -112dBm | None | 21,5x15,6mm | THT | |||||||||||||
|
RC-CC1101-SPI-868 (replacement for RXQ4-868)
Multichannel Radio Transceiver based on the CC1101 chip; 868MHz; Po 10dBm; Si -112dBm; 500kbps max; Is Tx/Rx 30mA/18mA; 1,8V~3,6V; -20°C ~ 70°C;
|
|||||||||||||||||||||||||
Rys.RC-21.50x15.60
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 868MHz | 500kbps | 1,8V~3,6V | -20°C ~ 70°C | SPI | 10dBm | -112dBm | None | 21,5x15,6mm | THT | |||||||||||||
|
RC-CC1101-SPI-SMT-434
Multichannel Radio Transceiver based on the CC1101 chip; 434MHz; Po 10dBm; Si -112dBm; 500kbps max; Is Tx/Rx 30mA/18mA; 1,8V~3,6V; -20°C ~ 70°C;
|
|||||||||||||||||||||||||
Rys.RC-18.00x15.00sm
|
In stock:
3 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 434MHz | 500kbps | 1,8V~3,6V | -20°C ~ 70°C | SPI | 10dBm | -112dBm | None | 18x15mm | SMD | |||||||||||||
|
RC-CC1101-SPI-SMT-868
Multichannel Radio Transceiver based on the CC1101 chip; 868MHz; Po 10dBm; Si -112dBm; 500kbps max; Is Tx/Rx 30mA/18mA; 1,8V~3,6V; -20°C ~ 70°C;
|
|||||||||||||||||||||||||
|
Rys.RC-18.00x15.00sm
|
In stock:
3 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 868MHz | 500kbps | 1,8V~3,6V | -20°C ~ 70°C | SPI | 10dBm | -112dBm | None | 18x15mm | SMD | |||||||||||||
|
RC-CC1310-434
Multichannel Radio Transceiver based on the CC1310F128 chip; 434MHz; Po 14dBm; Si -124dBm; 4Mbps max; Is Tx/Rx 23,5mA/5,5mA; 1,8V~3,8V; -30°C ~ 75°C;
|
|||||||||||||||||||||||||
Rys.RC-22.00x15.00
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 434MHz | 4Mbps | 1,8V~3,8V | -30°C ~ 75°C | UART/I2C/SPI | 14dBm | -124dBm | External | 22x15x2,5mm | SMD | |||||||||||||
|
RC-CC1310-868
Multichannel Radio Transceiver based on the CC1310F128 chip; 868MHz; Po 14dBm; Si -124dBm; 4Mbps max; Is Tx/Rx 23,5mA/5,5mA; 1,8V~3,8V; -30°C ~ 75°C;
|
|||||||||||||||||||||||||
Rys.RC-22.00x15.00
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 868MHz | 4Mbps | 1,8V~3,8V | -30°C ~ 75°C | UART/I2C/SPI | 14dBm | -124dBm | External | 22x15x2,5mm | SMD | |||||||||||||
|
RC-CC1312R-868
Multichannel Radio Transceiver based on the CC1312R1F3 chip; 868MHz; Po 14dBm; Si -121dBm; 4Mbps max; Is Tx/Rx 24,9mA/5,8mA; 1,8V~3,8V; -30°C ~ 75°C;
|
|||||||||||||||||||||||||
Rys.RC-22.00x15.00
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 868MHz | 4Mbps | 1,8V~3,8V | -30°C ~ 75°C | UART/I2C/SPI | 14dBm | -121dBm | FSK | External | 22x15x2,5mm | SMD | ||||||||||||
|
RC-CC1352-868
Dual-band Multichannel Radio Transceiver based on the CC1352R chip; 868MHz/2,4HGz; Po 14dBm; Si -122dBm; 4Mbps max; Is Tx/Rx 24mA/8,1mA; 1,8V~3,8V; -30°C ~ 75°C;
|
|||||||||||||||||||||||||

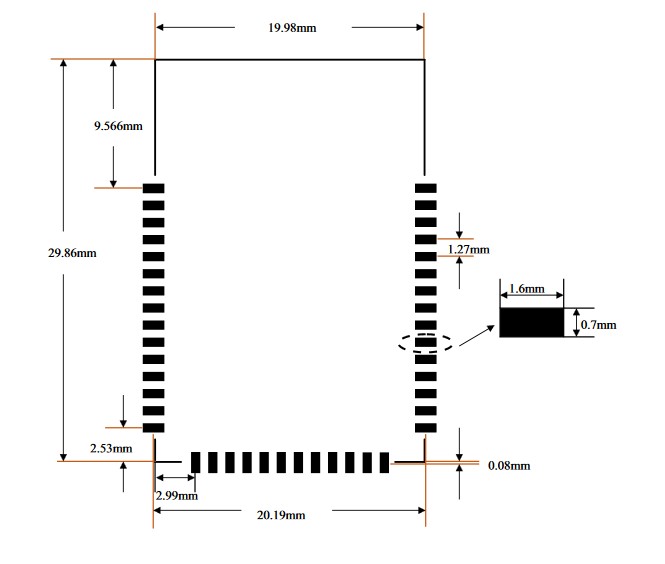

Rys.RC-29.9x19.98
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 2,4GHz | 4Mbps | 1,8V~3,8V | -30°C ~ 75°C | UART/I2C/SPI | 14dBm | -122dBm | External | 29,86x19,98mm | SMD | |||||||||||||
|
RC-RFSK1-433N (replacement for RRFQ1-433)
FSK Superheterodyne Receiver w/Crystal Oscillator; 433,92MHz; Si -118dBm; 4,8kbps max; BW +/-0,15MHz; Is 8mA; 4,5V~5,5V; -20°C ~ 70°C;
|
|||||||||||||||||||||||||

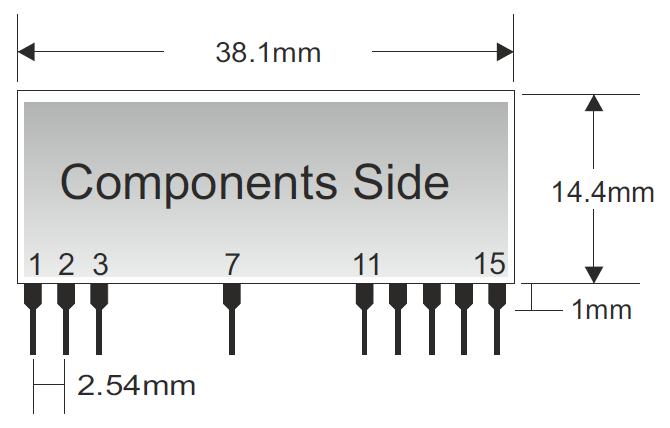

Rys.RC-38.10x14.40
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Odbiornik radiowy FSK | 433,92MHz | 4,8kbps | 4,5V~5,5V | -20°C ~ 70°C | -118dBm | FSK | External (Antenna pin) | 38,1x14,4mm | THT | ||||||||||||||
|
RC-RFSK1-434 (replacement for RRFQ1-433)
FSK Superheterodyne Receiver w/Crystal Oscillator; 433,92MHz; Si -102dBm; 4,8kbps max; BW +/-0,15MHz; Is 5,7mA; 4,5V~5,5V; -25°C ~ 80°C;
|
|||||||||||||||||||||||||
Rys.RC-38.10x18.30
|
In stock:
1 pcs. |
||||||||||||||||||||||||
|
Stock availableWhile the stock lasts
Packaging: 5/10 Quantity (multiple 1) |
ASK/OOK Receiver | 433,92MHz | 4,8kbps | 4,5V~5,5V | -25°C ~ 80°C | -102dBm | FSK | External (Antenna pin) | 38,1x18,3mm | THT | ||||||||||||||
|
RC-RFSK1-868 (replacement for RRFQ1-868)
FSK Superheterodyne Receiver w/Crystal Oscillator; 868,35MHz; Si -102Bm; 4,8kbps max; BW +/-0,15MHz; Is 5,7mA; 4,5V~5,5V; -25°C ~ 80°C;
|
|||||||||||||||||||||||||
Rys.RC-38.10x18.30
|
In stock:
8 pcs. |
||||||||||||||||||||||||
|
Packaging: 5/10 Quantity (multiple 1) |
ASK/OOK Receiver | 868,35MHz | 4,8kbps | 4,5V~5,5V | -25°C ~ 80°C | -102dBm | FSK | External (Antenna pin) | 38,1x18,3mm | THT | ||||||||||||||
|
RC-RHCS-4CH
AM Superheterodyne Receiver w/Crystal Oscillator&HCS/EV1527/RT1530 Decoding (4 channels); 433,92MHz; Si -108dBm; 10kbps max; BW 0,6MHz; Is 5,7mA; 4,5V~5,5V; -25°C ~ 80°C;
|
|||||||||||||||||||||||||
Rys.RC-38.1x11
|
In stock:
2 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
ASK/OOK Receiver | 433,92MHz | 10kbps | 4,5V~5,5V | -25°C ~ 80°C | -108dBm | External (Antenna pin) | 38,1x11mm | THT | |||||||||||||||
|
RC-S2LP-868
Multichannel Radio Transceiver based on the S2-LP chip; UFL connector; 868MHz/915MHz; Po 16dBm; Si -128dBm; Is Tx/Rx 20mA/7,2mA; 1,8V~3,6V; -30°C ~ 75°C;
|
|||||||||||||||||||||||||
Rys.RC-22.00x15.00
|
In stock:
3 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 915MHz | 500kbps | 1,8V~3,6V | -30°C ~ 75°C | UART/SPI | 16dBm | -128dBm | 2GFSK; 4GFSK; ASK; OOK | External | 22x15x3,3mm | SMD | ||||||||||||
|
RC-S2LP-868-HA
Multichannel Radio Transceiver based on the S2-LP chip; Helical antenna; 868MHz/915MHz; Po 16dBm; Si -128dBm; Is Tx/Rx 20mA/7,2mA; 1,8V~3,6V; -30°C ~ 75°C;
|
|||||||||||||||||||||||||
Rys.RC-22.00x15.00ha
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 915MHz | 500kbps | 1,8V~3,6V | -30°C ~ 75°C | UART/SPI | 16dBm | -128dBm | 2GFSK; 4GFSK; ASK; OOK | External | 29x15x3,3mm | SMD | ||||||||||||
|
In stock:
1 pcs. |
|||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 915MHz | 500kbps | 1,8V~3,6V | -30°C ~ 75°C | UART/SPI | 16dBm | -128dBm | 2GFSK; 4GFSK; ASK; OOK | External | 29x15x3,3mm | SMD | ||||||||||||
|
RC-SPIRIT2-433
Multichannel Radio Transceiver based on the S2-LP chip; UFL connector; 433MHz; Po 15,5dBm; Si -128dBm; Is Tx/Rx 20mA/7,2mA; 1,8V~3,8V; -30°C ~ 75°C;
|
|||||||||||||||||||||||||
Rys.RC-13.5x11.5
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 433MHz | 500kbps | 1,8V~3,8V | -30°C ~ 75°C | UART/SPI | 15,5dBm | -128dBm | 2GFSK; 4GFSK; ASK; OOK | External | 11,5x13,5x2,5mm | SMD | ||||||||||||
|
RC-SPIRIT2-868
Multichannel Radio Transceiver based on the S2-LP chip; UFL connector; 868MHz; Po 15,5dBm; Si -128dBm; Is Tx/Rx 20mA/7,2mA; 1,8V~3,8V; -30°C ~ 75°C;
|
|||||||||||||||||||||||||
Rys.RC-13.5x11.5
|
In stock:
5 pcs. |
||||||||||||||||||||||||
|
Packaging: 5 Quantity (multiple 1) |
Transceiver | 868MHz | 500kbps | 1,8V~3,8V | -30°C ~ 75°C | UART/SPI | 15,5dBm | -128dBm | 2GFSK; 4GFSK; ASK; OOK | External | 11,5x13,5x2,5mm | SMD | ||||||||||||
