Resettable fuses (results: 383)
| Product | Cart |
Case
|
Kind of fuse
|
Manufacturer
|
Mounting
|
Operating voltage
|
Terminal pitch
|
Rated current
|
Operating temperature (range)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
Resettable fuse; 0.10A
Resettable fuse; THT; current: 0.10A; voltage: 130V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C; equivalents: FRA010-120F; LBN100F; EX010-V1
|
||||||||||
Rys.BP130-100
|
N/A | Polymer | N/A | THT | 130V | 5,1mm | 0,10A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 0.15A
Resettable fuse; THT; current: 0.15A; voltage: 500V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C
|
||||||||||
Rys.BP500-150
|
N/A | Polymer | N/A | THT | 500V | 5,1mm | 0,15A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 0.16A
Resettable fuse; THT; current: 0.16A; voltage: 500V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C
|
||||||||||
Rys.BP500-160
|
N/A | Polymer | N/A | THT | 500V | 5,1mm | 0,16A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 0.20A
Resettable fuse; THT; current: 0.20A; voltage: 500V; r=5.1mm; endurance: 200cycles; operating temperature: -40÷85°C
|
||||||||||
Rys.BP500-200
|
N/A | Polymer | N/A | THT | 500V | 5,1mm | 0,20A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
0ZRM0030FF1E Bel Fuse
Resettable fuse; THT; current: 0,3A; voltage: 120V; r=5.1mm; operating temperature: -40÷85°C
|
||||||||||
Rys.0ZRM
|
N/A | Polymer | Bel Fuse | THT | 120V | 5,1mm | 0,30A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
0ZRC0050FF1E Bel Fuse
Resettable fuse; THT; current: 0,5A; voltage: 90V; r=5.1mm; operating temperature: -40÷85°C
|
||||||||||
|
Rys.0ZRC
|
N/A | Polymer | Bel Fuse | THT | 90V | 5,1mm | 0,50A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 0.75A
Resettable fuse; THT; current: 0.75A; voltage: 30V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C
|
||||||||||

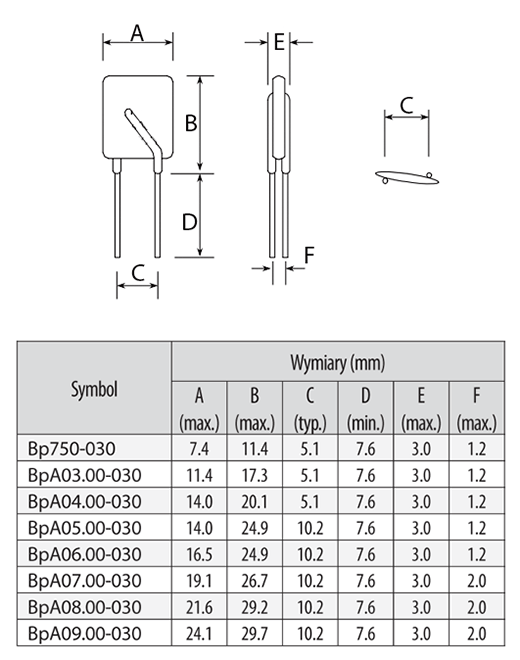

Rys.BP30-075
|
||||||||||
|
|
Item available on a request
|
N/A | Polymer | N/A | THT | 30V | 5,1mm | 0,75A | -40°C ~ 85°C | |
|
|
Item in delivery
Estimated time: 2025-05-15
Quantity of pieces: 1000
|
|||||||||
|
Resettable fuse; 0.90A
Resettable fuse; THT; current: 0.90A; voltage: 72V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C equivalents: RXEF090
|
||||||||||

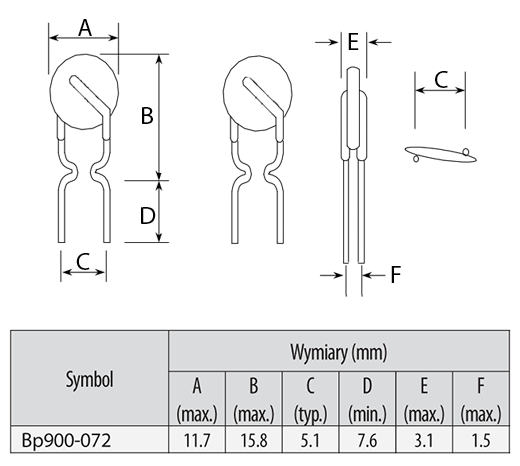

Rys.BP72-090
|
N/A | Polymer | N/A | THT | 72V | 5,1mm | 0,90A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 1.35A
Resettable fuse; THT; current: 1.35A; voltage: 130V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C; equivalents: FRA135-120F
|
||||||||||
Rys.BP130-1350
|
N/A | Polymer | N/A | THT | 130V | 5,1mm | 1,35A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 1.5A
Resettable fuse; THT; current: 1.50A; voltage: 250V; r=10.2mm; endurance: 100cycles; operating temperature: -40÷85°C
|
||||||||||
Rys.BP250-1500
|
N/A | Polymer | N/A | THT | 250V | 10,2mm | 1,50A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 1.85A
Resettable fuse; THT; current: 1.85A; voltage: 30V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C; equivalents: MF-R185; RUE185; FRU185-30F; 30R185
|
||||||||||
|
Rys.BP30-185
|
||||||||||
|
|
Item available on a request
|
N/A | Polymer | N/A | THT | 30V | 5,1mm | 1,85A | -40°C ~ 85°C | |
|
|
Item in delivery
Estimated time: 2025-05-15
Quantity of pieces: 1500
|
|||||||||
|
0ZRN0200FF1E Bel Fuse
Resettable fuse; THT; current: 2A; voltage: 16V r=5.1mm; operating temperature: -40÷125°C equivalents: MF-RHT200; BpA02.00-016
|
||||||||||
|

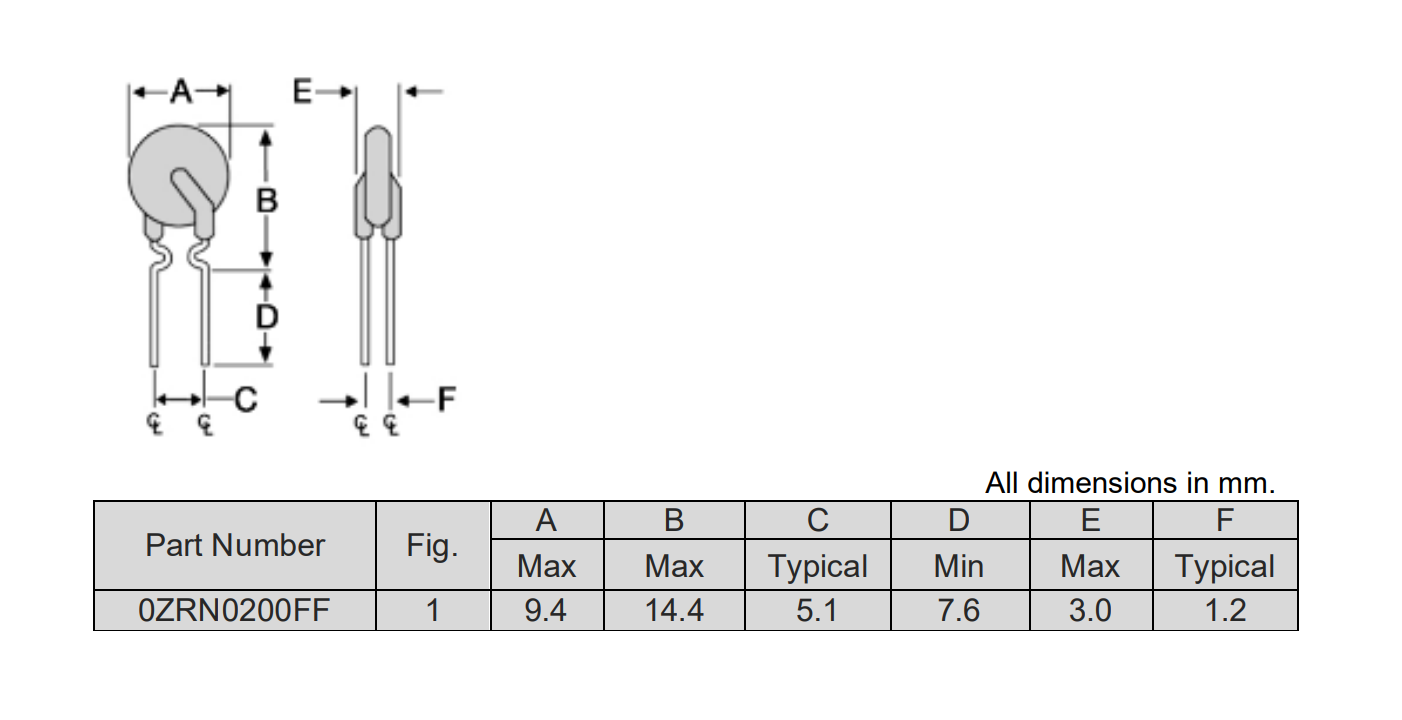

Rys.0ZRN
|
N/A | Polymer | Bel Fuse | THT | 16V | 5,1mm | 2,0A | -40°C ~ 125°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 2A
Resettable fuse; THT; current: 2A; voltage: 130V; r=10.2mm; endurance: 100cycles; operating temperature: -40÷85°C; equivalents: LVRL200S
|
||||||||||
|
Rys.BP130-2000
|
N/A | Polymer | N/A | THT | 130V | 10,2mm | 2,0A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 4A
Resettable fuse; THT; current: 4A; voltage: 16V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C; equivalents: RGEF400; FRG400-16F; 16R400B; 0ZRN0400FF1E
|
||||||||||
|

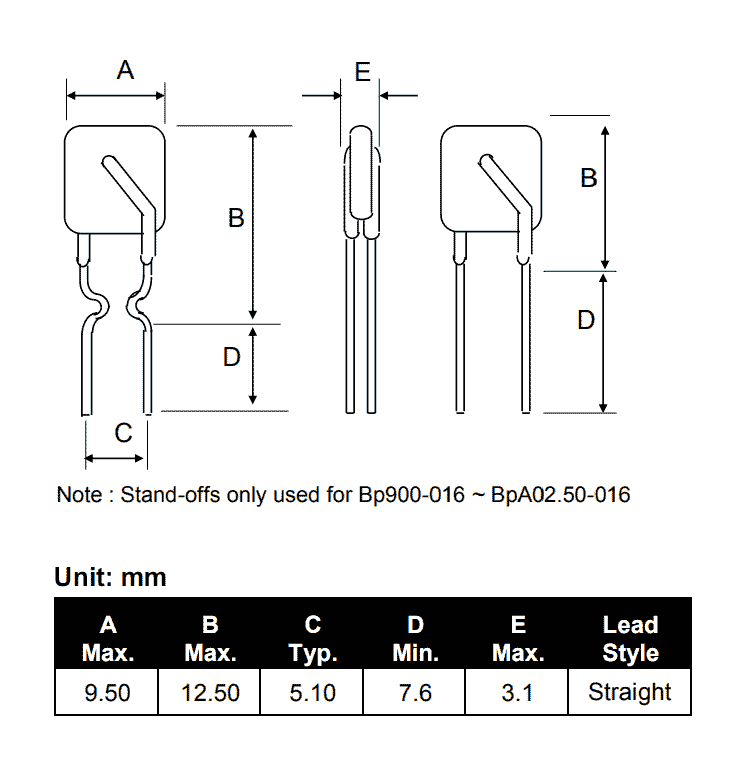

Rys.BP16-400
|
N/A | Polymer | N/A | THT | 16V | 5,1mm | 4,0A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 8A
Resettable fuse; THT; current: 8A; voltage: 16V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C; equivalents: RGEF800; FRG800-16F; 16R800B; 0ZRN0800FF1A
|
||||||||||
|
Rys.BP16-800
|
N/A | Polymer | N/A | THT | 16V | 5,1mm | 8,0A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 9A
Resettable fuse; THT; current: 9A; voltage: 16V; r=5.1mm; endurance: 100cycles; operating temperature: -40÷85°C; equivalents: RGEF900; FRG900-16F; 16R900B; 0ZRN0900FF1A
|
||||||||||
|
Rys.BP16-900
|
N/A | Polymer | N/A | THT | 16V | 5,1mm | 9,0A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 12A
Resettable fuse; THT; current: 12A; voltage: 16V; r=10.2mm; endurance: 100cycles; operating temperature: -40÷85°C;
|
||||||||||
|
Rys.BP16-1200
|
N/A | Polymer | N/A | THT | 16V | 10,2mm | 12A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 13A
Resettable fuse; THT; current: 13A; voltage: 16V r=10.2mm; endurance: 100cycles; operating temperature: -40÷85°C; equivalents: MF-RHT1300; 0ZRN1300FF1A
|
||||||||||
Rys.BP16-1300
|
N/A | Polymer | N/A | THT | 16V | 10,2mm | 13A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 14A
Resettable fuse; THT; current: 14A; voltage: 16V; r=10.2mm; endurance: 100cycles; operating temperature: -40÷85°C; equivalents: 0ZRN1400FF1A
|
||||||||||
|
Rys.BP16-1400
|
N/A | Polymer | N/A | THT | 16V | 10,2mm | 14A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 15A
Resettable fuse; THT; current: 15A; voltage: 16V r=10.2mm; endurance: 100cycles; operating temperature: -40÷85°C equivalents: 0ZRN1500FF1A
|
||||||||||
|

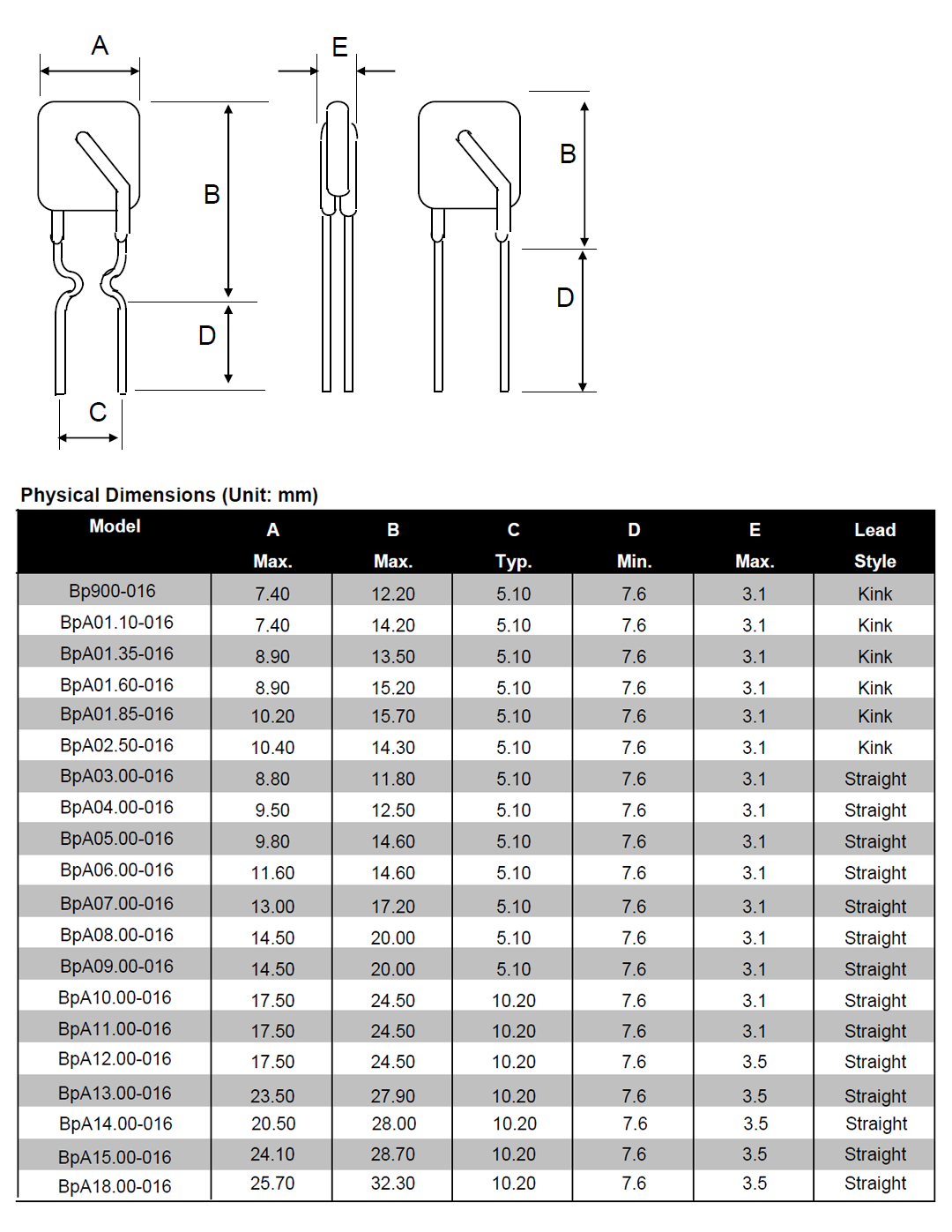

Rys.BP16-1500
|
N/A | Polymer | N/A | THT | 16V | 10,2mm | 15A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
FemtoSMDC035F-02 Littelfuse Fuse
Resettable fuse; SMD0603; current: 0.35A; voltage: 6V; operating temperature: -40÷85°C equivalents: BpS03-350-06
|
||||||||||
Rys.Bp0603
|
0603 | Polymer | Littelfuse | SMD | 6V | 0 | 0,35A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
0ZCK0075FF2E Bel Fuse
Resettable fuse; SMD0805; current: 0.75A; voltage: 6V; operating temperature: -40÷85°C; equivalents: MF-PSMF075X; FSMD075-0805R; 0805L075SLYR; 0805L075
|
||||||||||
|
Rys.BpS0805 B
|
0805 | Polymer | Bel Fuse | SMD | 6V | 0 | 0,75A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
1206L010/60WR Littelfuse Fuse
Resettable fuse; SMD1206; current: 0.10A; voltage: 60V; operating temperature: -40÷85°C equivalents: FSMD010-1206, LP-NSM010, SN010-60; BpS06-100-60; PTS120660V010; 0ZCJ0010FF2E
|
||||||||||
Rys.BpS1206 LIT
|
1206 | Polymer | Littelfuse | SMD | 60V | 0 | 0,10A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 0.16A
Resettable fuse; SMD1206; current: 0.16A; voltage: 30V; operating temperature: -40÷85°C equivalents: 1206L016WR; 0ZCJ0016FF2E
|
||||||||||
|
Rys.BpS1206
|
||||||||||
|
|
Item available on a request
|
1206 | Polymer | N/A | SMD | 30V | 0 | 0,12A | -40°C ~ 85°C | |
|
|
Item in delivery
Estimated time: 2025-05-15
Quantity of pieces: 3500
|
|||||||||
|
0ZCJ0016FF2E Bel Fuse
Resettable fuse; SMD1206; current: 0.16A; voltage: 48V; operating temperature: -40÷85°C equivalents: BpS06-160-30; 1206L016WR
|
||||||||||
Rys.BpS1206 B
|
||||||||||
|
|
Item available on a request
|
1206 | Polymer | Bel Fuse | SMD | 48V | 0 | 0,16A | -40°C ~ 85°C | |
|
|
Item in delivery
Estimated time: 2025-07-18
Quantity of pieces: 3000
|
|||||||||
|
Resettable fuse; 0.35A
Resettable fuse; SMD1206; current: 0.35A; voltage: 6V; operating temperature: -40÷85°C;
|
||||||||||
|
Rys.BpS1206
|
1206 | Polymer | N/A | SMD | 6V | 0 | 0,35A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
0ZCJ0075FF2E Bel Fuse
Resettable fuse; SMD1206; current: 0.75A; voltage: 8V; operating temperature: -40÷85°C equivalents: 1206L075THYR
|
||||||||||
|
Rys.BpS1206 B
|
1206 | Polymer | Bel Fuse | SMD | 8V | 0 | 0,75A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
0ZCJ0110FF2E Bel Fuse
Resettable fuse; SMD1206; current: 1.1A; voltage: 8V; operating temperature: -40÷85°C equivalents: 1206L110THYR
|
||||||||||
|
Rys.BpS1206 B
|
1206 | Polymer | Bel Fuse | SMD | 8V | 0 | 1,1A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
0ZCJ0150FF2C Bel Fuse
Resettable fuse; SMD1206; current: 1.5A; voltage: 8V; operating temperature: -40÷85°C
|
||||||||||
|
Rys.BpS1206 B
|
1206 | Polymer | Bel Fuse | SMD | 8V | 0 | 1,50A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
|
Resettable fuse; 2A
Resettable fuse; SMD1206; current: 2A; voltage: 6V; operating temperature: -40÷85°C; equivalents: MF-NSMF200; NANOSMDC200F-2; FSMD200-1206R; 1206L200; 0ZCJ0200FF2C
|
||||||||||
|
Rys.BpS1206
|
1206 | Polymer | N/A | SMD | 6V | 0 | 2,0A | -40°C ~ 85°C | ||
|
|
Item available on a request
|
|||||||||
Resettable Fuses
Resettable fuses represent a specialized group of fuses that are distinguished primarily by their ability to be reset. A resettable fuse protects a circuit from the negative effects of overcurrent, but unlike traditional fuses, it does not get destroyed when it operates. Thus, the component does not need to be replaced each time the circuit experiences excessive current flow.
How Do Resettable Fuses Work?
The unique characteristics of resettable fuses are achieved through their construction. These components are made from a polymer material that normally has relatively low resistance. However, when an overcurrent condition occurs, the temperature of the fuse rises, causing the carbon connections to break. Once the current stops flowing, the component cools down, allowing it to return to its original operational mode.
How Many Operating Cycles Can Resettable Fuses Endure?
Resettable fuses are components that can protect a circuit from overcurrent multiple times. However, they have a defined number of operating cycles after which they will lose their effectiveness. This number can vary depending on the design and materials used, but it usually ranges from several dozen to over a hundred cycles. Before purchasing, it is wise to check the values specified by the manufacturer. This parameter should also be matched to the specific requirements of the device.
Resettable Fuse – Markings
The components available in our online store differ in their properties. To make it easier to identify the parameters of specific components, manufacturers use appropriate markings on resettable fuses. These typically include properties such as nominal current and rated voltage. The markings help in easily finding the right component for your needs.
Applications of Resettable Fuses
Resettable fuses are versatile components used in many different devices. They are useful in situations where using single-use elements would be impractical. Resettable fuses are therefore used in portable electronic devices, in projects created by enthusiasts, and also in applications like automobiles.
Although resettable fuses are highly practical, in some circuits, it may be necessary to use other types of components. That’s why our store also offers components such as cup fuses, ceramic fuses, and thermal fuses. This ensures you can easily find the right protection for your circuit.
