ATF22V10CQZ-20JU

Symbol Micros: GAL22v1020ju atcq

45467

GAL22v1020ju atcq

Contractor Symbol:

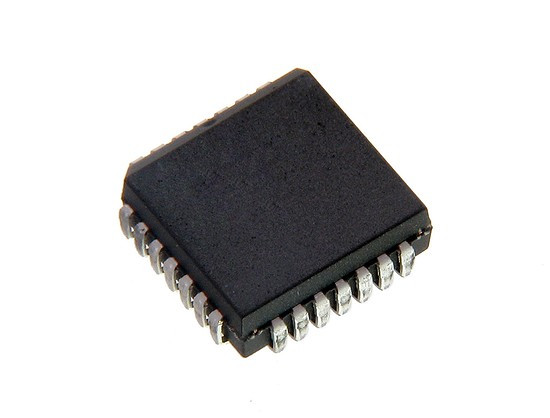

Case : PLCC28

Datasheet

Technical drawing Add to favourites

PLD GAL, 500 Gates, 10 Macrocells, 10I/O, 20ns, 70mA, 5V, -40÷85°C

Parameters

Number of I/O:	10
Macrocells number:	10
Case:	PLCC28
Supply voltage range:	4,5V~5,5V
Propagation time:	20ns
Manufacturer:	Atmel
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: Microchip Manufacturer part number: ATF22V10CQZ-20JU RoHS Case style: PLCC28 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,1485	2,6044	2,2827	2,1242	2,0320

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: Microchip Manufacturer part number: ATF22V10CQZ-20JU Case style: PLCC28

External warehouse:

190 pcs.

Quantity of pcs.	76+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	2,6278

Add to comparison tool Add inquiry (RFQ)

Packaging:
38

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of I/O:	10
Macrocells number:	10
Case:	PLCC28
Supply voltage range:	4,5V~5,5V
Propagation time:	20ns
Manufacturer:	Atmel
Operating temperature (range):	-40°C ~ 85°C
Type:	PLD
