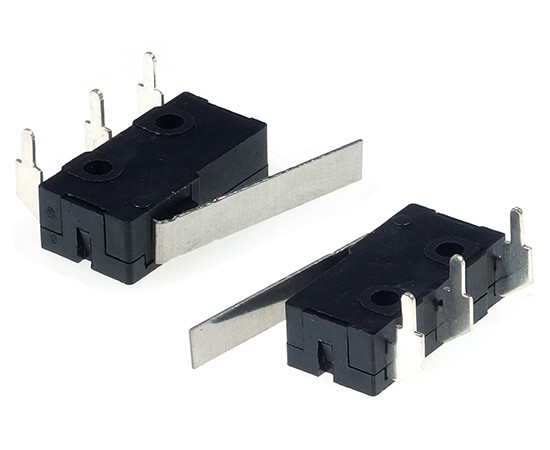

SS0503CR; micro switch;

Symbol Micros: PRZ SS0503CR

124493

PRZ SS0503CR

Contractor Symbol:

Case : Rys.SS0503CR

Datasheet

Technical drawing Add to favourites

5A; 125VAC; OFF-(ON); SPDT; 3P; endurance: 10000 cycles; temp. pracy: -25°C+85°C

Parameters

Dimensions:	19,6x10x6,9mm
Contacts rating:	5A 125VAC
Lever length:	22,6mm
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT

All parameters

Manufacturer:: FILN Manufacturer part number: SS0503CR RoHS 10T85u Case style: Rys.SS0503CR

In stock:

730 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,8070	0,5079	0,3988	0,3632	0,3513

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/1000 Quantity (multiple: 1)

- +

Manufacturer:: HIGHLY Manufacturer part number: SS0503CR RoHS Case style: Rys.SS0503CR

In stock:

4 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,9162	0,6100	0,5056	0,4557	0,4367

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/500 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	19,6x10x6,9mm
Contacts rating:	5A 125VAC
Lever length:	22,6mm
Operating temperature (range):	-25°C ~ 85°C
Manufacturer:	N/A
Switching method:	OFF-(ON)
Contacts configuration:	SPDT
Type of switch:	Micro switch
