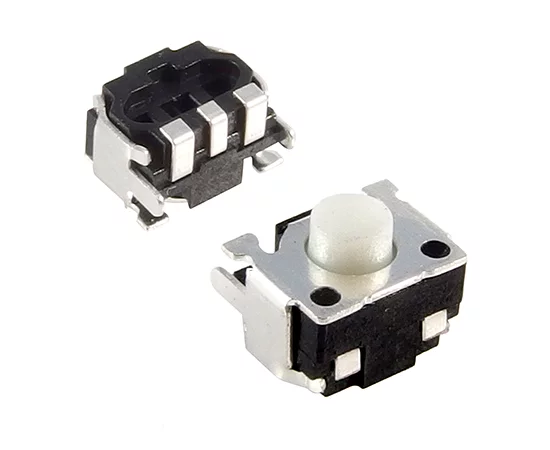

KAN4548 TACTRONIC Tact switch

Symbol Micros: PRZ Tss03-035t

115061

PRZ Tss03-035t

Contractor Symbol:

Case : Rys.Tss-03-035t

Datasheet

Technical drawing Add to favourites

4.3x3.4mm H=3.5mm (0.90mm), 12V DC, 50 mA, life 200000 cycles, travel 0.15c0.1mm SMD, operating force 160c50gf, taped

Parameters

Dimensions:	4,3x4,3mm
Height:	3,5mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mechanical durability:	200000 cycles
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-03-10

Quantity of pcs.: 2000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-12-30

Quantity of pcs.: 2000

• Parameters

Dimensions:	4,3x4,3mm
Height:	3,5mm
Operating Force [gF]:	160gF
Manufacturer:	TACTRONIC
Mechanical durability:	200000 cycles
Mounting:	SMD
