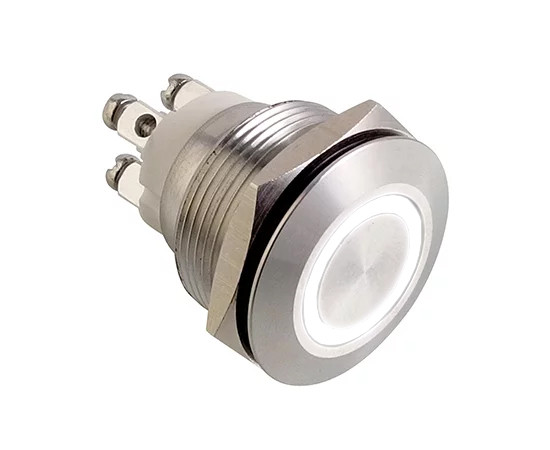

Vandal proof push button switch; W22F11EW12/S

Symbol Micros: PRZ W22F11EW12/S screw.

122985

PRZ W22F11EW12/S screw.

Contractor Symbol:

Case : Rys.W22F11EW12/S screw

Datasheet

Technical drawing Add to favourites

22mm; momentary; 1NO; stainless steel; screw terminal; front shape-flat; illuminated LED 12V; ring; white; 5A; IP67; electrical life: 40.000h

Parameters

Backlight colour:	White
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	Screw-on
Mounting hole diameter:	22mm

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-08-07

Quantity of pcs.: 19

• Parameters

Backlight colour:	White
Switching method:	1NO
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	Screw-on
Mounting hole diameter:	22mm
Illumination:	Edge
Illimination voltage:	12V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
