AN011 (replacement for: GSM-ANT018)
Symbol Micros:
RF AN011
Case : Rys.AN011

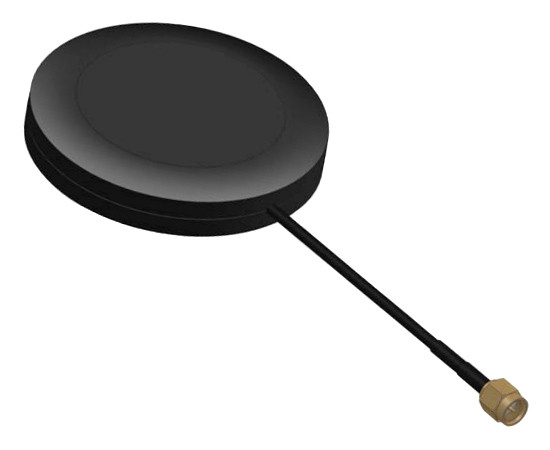

GSM Antenna, 824÷960/1710÷2170MHz, gain 2.0dBi, dimensions Ω×H 71.5×14.5mm SMA straight male connector, adhesive mount, RG174 3m cable
Parameters
| Dimensions: | 71,5x14,5mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Circle |
| Type of connector: | Straight male SMA |
Manufacturer:: import
Manufacturer part number: AN011 RoHS
Case style: Rys.AN011
In stock:
10 pcs.
| Quantity of pcs. | 1+ | 5+ | 10+ | 30+ | 100+ |
|---|---|---|---|---|---|
| Net price (EUR) | 6,4659 | 5,1898 | 4,8898 | 4,5852 | 4,3983 |
| Dimensions: | 71,5x14,5mm |
| Frequency range: | 824~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Circle |
| Type of connector: | Straight male SMA |
| Mounting: | Adhesive |
| Cable type: | RG174 |
| Polarisation: | Linear |
| Cable length: | 3m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena GSM
Częstotliwość: 824÷960/1710÷2170MHz
Zysk energetyczny: 2.0dBi
Wymiary zewnętrzne: Φ×H 71.5×14.5mm
Typ złącza: SMA męskie proste
Montaż: przyklejany
Przewód: RG174 3m
Polaryzacja: liniowa
V.S.W.R: <2.5
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
