LD1117CD-5.0 UMW

Symbol Micros: ST1117dt5.0 UMW
Contractor Symbol:

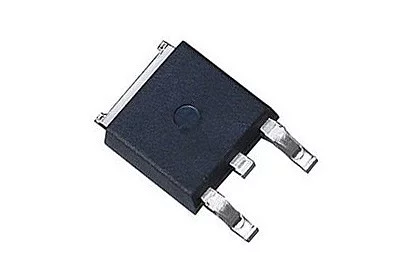

Case : TO252 (DPACK)
Technical drawing Add to favourites
Positive Voltage Regulator, LDO, 5V, 1A, 1.5%, 1.2V dropout, -40÷125°C; Replacement for: LM1117DT-5.0/NOPB, LM1117DTX-5.0/NOPB, LD1117DT50TR, NCP1117DT50G, NCP1117DT50RKG, TS1117BCP50 R0G, AP1117D50G-13, AP1117D50L-13;
Parameters
Working temperature range: -40°C ~ 125°C
Voltage drop: 1,2V
Output voltage [V]: 5V
Output current [A]: 1A
Tolerance [%]: 1,5%


Item available on request
Working temperature range: -40°C ~ 125°C
Voltage drop: 1,2V
Output voltage [V]: 5V
Output current [A]: 1A
Tolerance [%]: 1,5%
