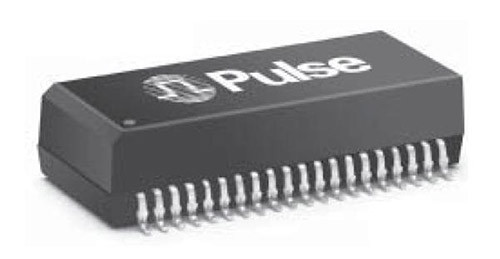

HX1234NL PULSE Transformer LAN

Symbol Micros: TR HX1234NL

87716

TR HX1234NL

Contractor Symbol:

Case : Rys.HX1234NL

Datasheet

Technical drawing Add to favourites

Turns ratio: RX 1:1, TX 1:1; Ethernet (10/100 Base-TX); SMD; dimensions: 28.58x16.76x5.84mm; operating temperature: -40°C~85°C; max.insertion loss -1.4dB

Parameters

Height:	5,84mm
Width:	16,76mm
Lenght:	28,58mm
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD

All parameters

Manufacturer:: PULSE Manufacturer part number: HX1234NL Case style: Rys.HX1234NL

External warehouse:

240 pcs.

Quantity of pcs.	15+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	8,1531

Add to comparison tool Add inquiry (RFQ)

Packaging:
15

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: PULSE Manufacturer part number: HX1234NL Case style: Rys.HX1234NL

External warehouse:

331 pcs.

Quantity of pcs.	45+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	3,1608

Add to comparison tool Add inquiry (RFQ)

Packaging:
15

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Height:	5,84mm
Width:	16,76mm
Lenght:	28,58mm
Manufacturer:	Pulse
Operating temperature (range):	-40°C ~ 85°C
Mounting:	SMD
