09 33 010 2772 HARTING
Symbol Micros:
Z 09330102772
Case : Rys.09330102772

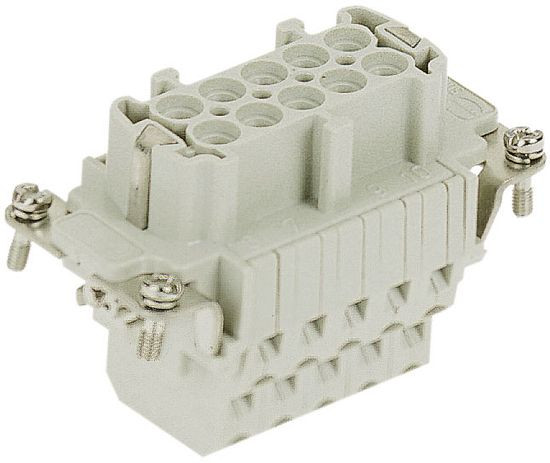

Insert with female contacts HAN ESS, size 10B 10 poles+PE, 16 A 500 V 6 kV 3, cage clamp type
Parameters
| Series: | Han ESS |
| Case: | Size 10B |
| Mounting: | Spring clamp |
| Type of pin configuration: | 10+PE |
| Connector: | Connect pad |
| Type of connector: | Female |
| Series: | Han ESS |
| Case: | Size 10B |
| Mounting: | Spring clamp |
| Type of pin configuration: | 10+PE |
| Connector: | Connect pad |
| Type of connector: | Female |
Detailed description
Micros Part Number | Z 09330102772 |
Manufacturer Part Number | 09 33 010 2772 |
Gender | female |
Mechanical working life - mating cycles | >= 500 |
RoHS conformity | Yes |
Size | 10 B |
Series | Han® ESS |
Limiting temperature, min. | -40 °C |
Limiting temperature, max. | 125 °C |
Termination method | Cage-clamp terminal |
Number of contacts | 10 |
Hint | two terminals per contact |
Contact resistance | <= 3 mOhm |
Rated current | 16 A |
Rated voltage | 500 V |
Rated impulse voltage | 6 kV |
Pollution degree | 3 |
Contact identification, min. | 1 |
Contact identification, max. | 10 |
Wire cross section, min. | 0,14 mm2 |
Wire cross section, max. | 2,5 mm2 |
Wire gauge AWG, min. | AWG 26 |
Wire gauge AWG, max. | AWG 14 |
