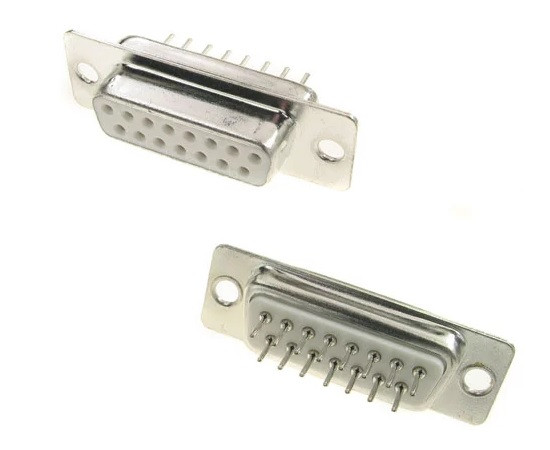

DS1034-15FWNSiSS CONNFLY D-Sub Connector

Symbol Micros: Z DD15G

18953

Z DD15G

Contractor Symbol:

Case : Rys.DI15S

Datasheet

Technical drawing Add to favourites

female; 15pin; for PCB; straight; through hole; w/o rivets and screws; metal housing; tinned, gold plated contacts, white insulator eqiv. DI15S-LF, DF15PP

Parameters

Manufacturer:	CONNFLY
Colour:	White
Number of pins:	15
Type of connector:	Socket
Orientation:	Straight

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	CONNFLY
Colour:	White
Number of pins:	15
Type of connector:	Socket
Orientation:	Straight
