DG350R-3.5-03P-14-02ZH DEGSON Terminal block

Symbol Micros: Z DG350R-3.5/3

35176

Z DG350R-3.5/3

Contractor Symbol:

Case : Rys.DG350R-3.5/3

Datasheet

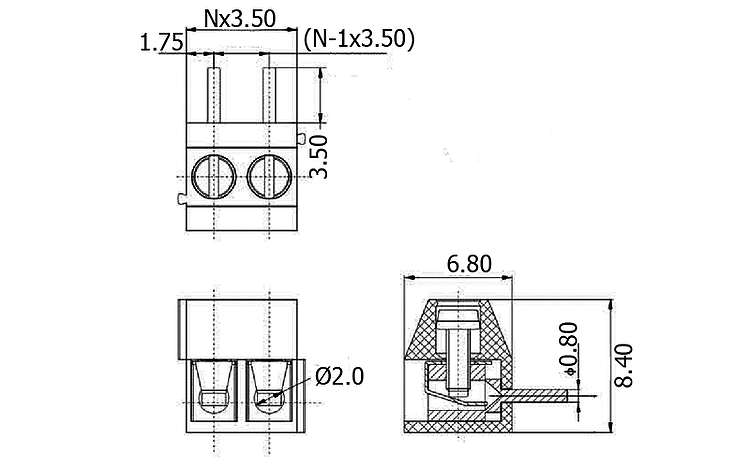

Technical drawing Add to favourites

3 poles, p.3.5mm, height 6.8mm, green colour, cross screw, 300V, 10A, 24-18AWG, 1.0mm2, straight, lift, PA66, UL94V-0, M2 eqiv. DINKLE ED350R, ANYTEK TF, EUROCLAMP MLK132-3,5-H

Parameters

Height:	6,8mm
Terminal pitch:	3,5mm
Number of pins:	3
Manufacturer:	DEGSON
Colour:	Green
Screw type:	Cross head screw

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	6,8mm
Terminal pitch:	3,5mm
Number of pins:	3
Manufacturer:	DEGSON
Colour:	Green
Screw type:	Cross head screw
