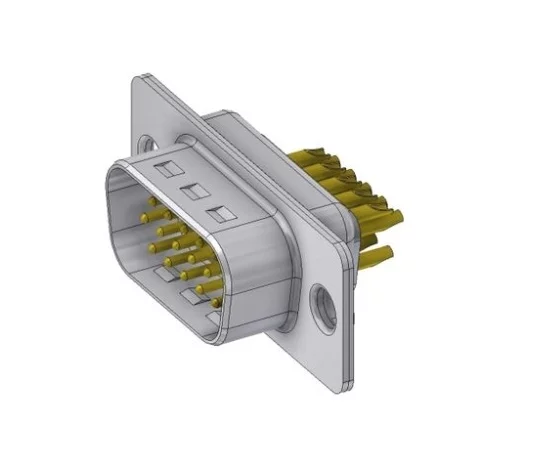

HD-D15PZ/2 DELTRON HD D-Sub Connector

Symbol Micros: Z DLG15W-DELTRON

112655

Z DLG15W-DELTRON

Contractor Symbol:

Case : Rys.DE008373

Datasheet

Technical drawing Add to favourites

male; 15pin; solder terminals, w/o rivets and screws, metal housing; copper alloy, white insulator

Parameters

Colour:	White
Manufacturer:	DELTRON
Number of pins:	15
Type of connector:	Plug
Orientation:	Straight

All parameters

Manufacturer:: DELTRON Manufacturer part number: HD-D15PZ/2 RoHS Case style: Rys.DE008373 Datasheet

In stock:

5 pcs.

Quantity of pcs.	1+	5+	20+	50+	200+
Net price (EUR)	5,2774	4,2233	3,8125	3,6646	3,5425

Add to comparison tool Add inquiry (RFQ)

Packaging:
5 Quantity (multiple: 1)

- +

• Parameters

Colour:	White
Manufacturer:	DELTRON
Number of pins:	15
Type of connector:	Plug
Orientation:	Straight
