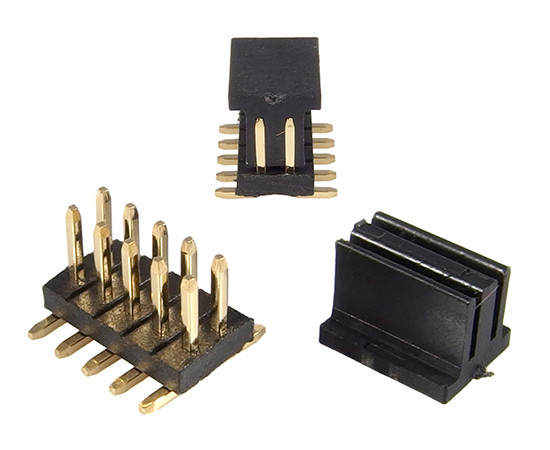

JVT1271H10-2*5C-S JVT Pin header dual row

Symbol Micros: Z L2x05T 1.27

104380

Z L2x05T 1.27

Contractor Symbol:

Case : Rys.L2x05T 1.27

Datasheet

Technical drawing Add to favourites

2x05pin, straight SMT, gold contact, p.1.27mm eqiv.ZL322-2X5P

Parameters

Type of pin configuration:	2x05
Number of pins:	10
Connector:	Pin strip
Mounting:	SMD
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	1,27mm

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1271H10-2*5C-S RoHS Case style: Rys.L2x05T 1.27 Datasheet

In stock:

1600 pcs.

Quantity of pcs.	2+	10+	50+	200+	800+
Net price (EUR)	0,5006	0,3023	0,2324	0,2097	0,2003

Add to comparison tool Add inquiry (RFQ)

Packaging:
800 Quantity (multiple: 1)

- +

Manufacturer:: JVT Manufacturer part number: JVT1271H10-2X05C-S RoHS Case style: Rys.L2x05T 1.27 Datasheet

In stock:

1008 pcs.

Quantity of pcs.	2+	10+	50+	200+	800+
Net price (EUR)	0,5006	0,3023	0,2324	0,2097	0,2003

Add to comparison tool Add inquiry (RFQ)

Packaging:
800/3200 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x05
Number of pins:	10
Connector:	Pin strip
Mounting:	SMD
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	1,27mm
