Omron relays (results: 75)
| Product | Cart |
AC contact current
|
Coil power
|
Coil voltage type [AC, DC]
|
Coil voltage (V)
|
Contacts configuration
|
Contact voltage
|
DC contact current
|
Dimensions
|
Manufacturer
|
Mounting
|
Operating temperature (range)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G5LE-1 24VDC power relay
5V; 10A; 400mW; SPDT; 22,5 x 16,5 x 19mm PCB
|
|||||||||||||
| 10A | DC | 5V | SPDT | 250VAC/125VDC | 10A | 22,5 x 16,5 x 19mm | OMRON | PCB | -25°C ~ 85°C | ||||
|
|
Item available on a request
|
||||||||||||
|
G5Q-1A-EU-24VDC miniature power relay
24V; 10A; 200mW; SPST-NO; 20 x 15,5 x 10mm PCB
|
|||||||||||||
| 10A | DC | 24V | SPST-NO | 277VAC/30VDC | 10A | 20 x 15,5 x 10mm | OMRON | PCB | -40°C ~ 85°C | ||||
|
|
Item available on a request
|
||||||||||||
|
G5RL-1-E-HR 12 low profile power relay
12V; 16A; SPDT; 400mW; 29 x 12,7 x 15,7mm PCB
|
|||||||||||||
| 16A | DC | 12V | SPDT | 250VAC/24VDC | 16A | 29 x 12.7 x 15.7mm | OMRON | PCB | -40°C ~ 85°C | ||||
|
|
Item available on a request
|
||||||||||||
|
G5RL-1A-E-HR 05 low profile power relay
5V; 16A; SPST; 400mW; 29 x 12,7 x 15,7mm PCB
|
|||||||||||||
| 16A | DC | 5V | SPST | 250VAC/24VDC | 16A | 29 x 12.7 x 15.7mm | OMRON | PCB | -40°C ~ 85°C | ||||
|
|
Item available on a request
|
||||||||||||
|
G6A-274P-ST-US 05 signal relay
5V; 2A; 200mW; DPDT; 20,2 x 10,1 x 8,4mm PCB
|
|||||||||||||
| 2A | DC | 5V | DPDT | 250VAC/220VDC | 2A | 20,2 x 10,1 x 8,4mm | OMRON | PCB | -40°C ~ 70°C | ||||
|
|
Item available on a request
|
||||||||||||
|
G6D-1A-ASI-24DC power relay
5A; 24VDC; SPST-NO; 200mW; 17,5 x 6,5 x 12,5mm PCB
|
|||||||||||||
| 5A | 200mW | DC | 24V | SPST-NO | max. 30V DC, max. 250V AC | 5A | 17,5x6,5x12,5mm | OMRON | PCB | -25°C ~ 70°C | |||
|
|
Item available on a request
|
||||||||||||
|
G6E-134P-US-12 signal relay
12V; 3A; 200mW; SPDT; 16 x 9,9 x 7,9mm PCB
|
|||||||||||||
| 3A | DC | 12V | SPDT | 250VAC/220VDC | 3A | 16 x 9,9 x 7,9mm | OMRON | PCB | -40°C ~ 70°C | ||||
|
|
Item available on a request
|
||||||||||||
|
G6E-134P-US-24 signal relay
24V; 3A; 200mW; SPDT; 16 x 9,9 x 7,9mm PCB
|
|||||||||||||
| 3A | DC | 24V | SPDT | 250VAC/220VDC | 3A | 16 x 9,9 x 7,9mm | OMRON | PCB | -40°C ~ 70°C | ||||
|
|
Item available on a request
|
||||||||||||
|
G6K-2F-Y-5DC miniature relay
5V; 1A; 100mW; DPDT; 10x6,5x5,2mm SMD
|
|||||||||||||
| 0,3A | 100mW | DC | 5V | DPDT | max. 60V DC, max. 125V AC | 1A | 10x6,5x5,2mm | OMRON | SMD | -40°C ~ 70°C | |||
|
|
Item available on a request
|
||||||||||||
|

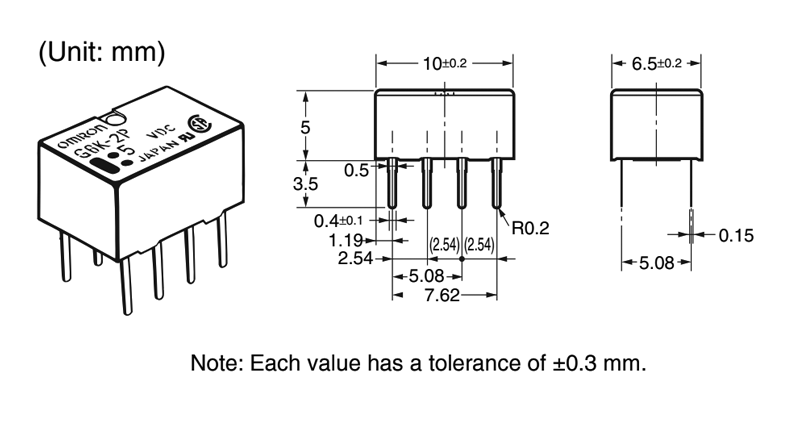

G6K-2P-DC05 subminiature relay
1A; 5V; DPDT; 100mW; 10 x 6,5 x 5mm PCB
|
|||||||||||||
| 1A | DC | 5V | DPDT | 125VAC/60VDC | 1A | 10 x 6,5 x 5mm | OMRON | PCB | -40°C ~ 70°C | ||||
|
|
Item available on a request
|
||||||||||||
|

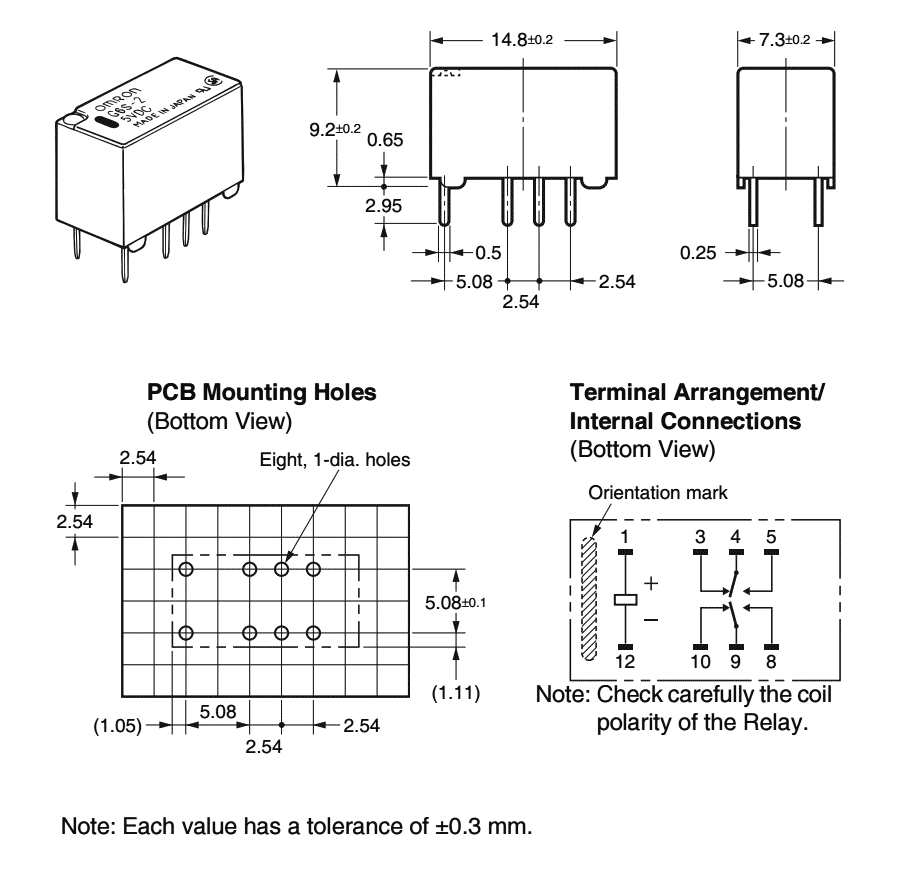

G6S-2-12VDC signal relay
12V; 2A; 140mW; DPDT; 14,8x7,3x9,2mm PCB
|
|||||||||||||
| 0,5A | 140mW | DC | 12V | DPDT | max. 220V DC, max. 250V AC | 2A | 14,8x7,3x9,2mm | OMRON | PCB | -40°C ~ 85°C | |||
|
|
Item available on a request
|
||||||||||||
|
G5PZ-1A-24DC PCB power relay
16A; 24V; SPST-NO; 530mW; 23,8x10,3x24,9mm; PCB
|
|||||||||||||
| 16A | 530mW | DC | 24V | SPST-NO | max. 250V AC | 16A | OMRON | PCB | |||||
|
|
Item available on a request
|
||||||||||||
|
G5PZ-1A-12DC PCB power relay
16A; 12V; SPST-NO; 530mW; 23,8x10,3x24,9mm; PCB
|
|||||||||||||
|
|
Item available on a request
|
||||||||||||
|
G5PZ-1A-E-5DC PCB power relay
20A; 5V; SPST-NO; 530mW; 23,8x10,3x24,9mm; PCB
|
|||||||||||||
|
|
Item available on a request
|
||||||||||||
|
G5PZ-1A-E-12DC PCB power relay
20A; 12V; SPST-NO; 530mW; 23,8x10,3x24,9mm; PCB
|
|||||||||||||
|
|
Item available on a request
|
||||||||||||
