Tilt and vibration sensors (results: 33)
| Product | Cart |
Tilt angle [°]
|
Mounting
|
Sensor
|
Type of switch
|
Dimensions
|
Manufacturer
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RBS020602
Tilt & vibration sensor, normally open switch, SMT, tilt angle: <20° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS020602
|
In stock:
20 pcs. |
||||||||||||||||||
|
Packaging: 20 Quantity (multiple 1) |
<20 | SMT | Tilt, Vibration | NO | 13.6xfi4mm | OncQue | ||||||||||||
|
RBS021002
Tilt & vibration sensor, normally closed switch, SMT, tilt angle: >20° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS021002
|
In stock:
108 pcs. |
||||||||||||||||||
|
Packaging: 200 Quantity (multiple 1) |
>20 | SMT | Tilt, Vibration | NC | 8.4xfi3mm | OncQue | ||||||||||||
|
RBS021202
Tilt & vibration sensor, normally closed switch, SMT, tilt angle: >20° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS021202
|
In stock:
10 pcs. |
||||||||||||||||||
|
Packaging: 100 Quantity (multiple 1) |
>20 | SMT | Tilt, Vibration | NC | 10.4xfi3mm | OncQue | ||||||||||||
|
RBS040110
Tilt sensor, normally closed switch, THT, tilt angle: >10° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS0401xx
|
In stock:
150 pcs. |
||||||||||||||||||
|
Packaging: 200 Quantity (multiple 1) |
>10 | THT | Tilt | NC | 11x6x5mm | OncQue | ||||||||||||
|

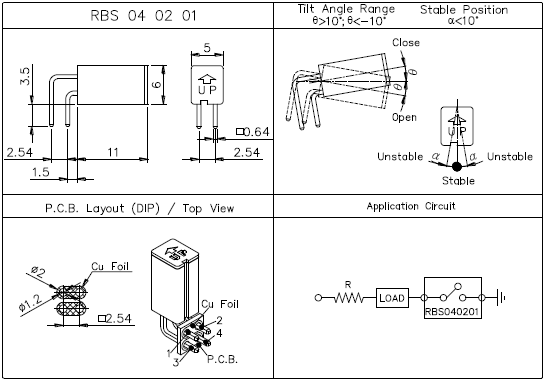

RBS040210
Tilt sensor, normally closed switch, THT, tilt angle: >10° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS0402xx
|
In stock:
88 pcs. |
||||||||||||||||||
|
Packaging: 200 Quantity (multiple 1) |
>10 | THT | Tilt | NC | 11x6x5mm | OncQue | ||||||||||||
|

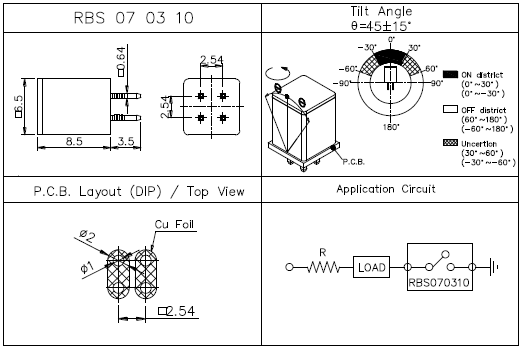

RBS070310
Tilt sensor, normally closed switch, THT, tilt angle: 45±15° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS070310
|
In stock:
70 pcs. |
||||||||||||||||||
|
Packaging: 100 Quantity (multiple 1) |
45+/-15 | THT | Tilt | NC | 8.5x6.5x6.5mm | OncQue | ||||||||||||
|
RBS100601
Rotation sensor, normally closed switch, THT, tilt angle: 45±15° contact: 10mA/5VDC/50Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS10060x
|
Manufacturer:
OncQue Manufacturer part number: RBS100601 RoHS Case style: OQ-RBS10060x |
In stock:
4 pcs. |
|||||||||||||||||
|
Packaging: 100 Quantity (multiple 1) |
45+/-15 | THT | Rotation | NC | 2.45x5x4.7mm | OncQue | ||||||||||||
|

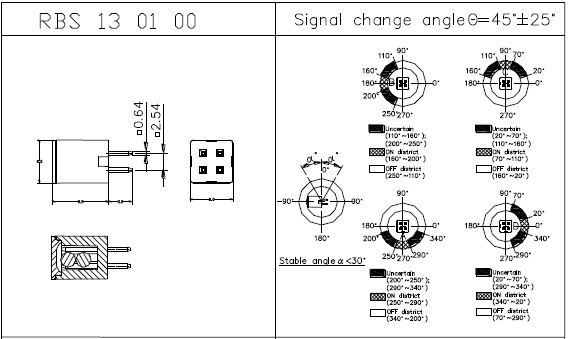

RBS130100
Tilt, vibration & rotation sensor, NC switch, THT, tilt angle: 45±25° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS130100
|
In stock:
47 pcs. |
||||||||||||||||||
|
Packaging: 50 Quantity (multiple 1) |
45+/-25 | THT | Tilt, Vibration, Rotation | NC | 8.5x6.5x6.5mm | OncQue | ||||||||||||
|

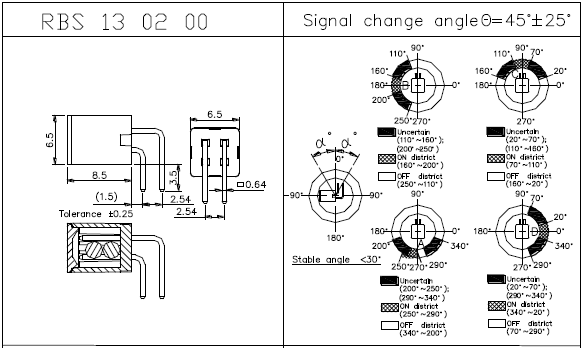

RBS130200
Tilt, vibration & rotation sensor, NC switch, THT, tilt angle: 45±25° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS130200
|
In stock:
50 pcs. |
||||||||||||||||||
|
Packaging: 50 Quantity (multiple 1) |
45+/-25 | THT | Tilt, Vibration, Rotation | NC | 8.5x6.5x6.5mm | OncQue | ||||||||||||
|
RBS151100
Tilt sensor, normally open switch, THT, tilt angle: 15±10° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS151100
|
In stock:
19 pcs. |
||||||||||||||||||
|
Packaging: 84 Quantity (multiple 1) |
15+/-10 | THT | Tilt | NO | 7x6x5mm | OncQue | ||||||||||||
|
RBS152100
Tilt sensor, normally open switch, SMT, tilt angle: 15±10° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS152100
|
In stock:
13 pcs. |
||||||||||||||||||
|
Packaging: 100 Quantity (multiple 1) |
15+/-10 | SMT | Tilt | NO | 7x6x5mm | OncQue | ||||||||||||
|

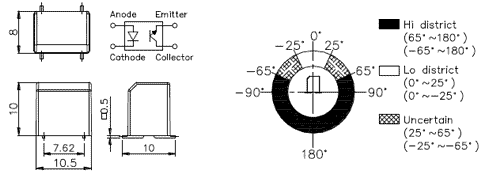

RBS310910
Tilt & vibration sensor, optical, SMT, tilt angle: 45±10° diode: 75mW/50mA/5V; phototransistor: 100mW/20mA/30V, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS360200
|
In stock:
466 pcs. |
||||||||||||||||||
|
Packaging: 350/700 Quantity (multiple 1) |
45+/-10 | SMT | Tilt, Vibration | Optical | 10x10.5x8mm | OncQue | ||||||||||||
|
RBS310911
Tilt & vibration sensor, optical, SMT, tilt angle: 30±10° diode: 75mW/50mA/5V; phototransistor: 100mW/20mA/30V, temperature: -25÷85°C
|
|||||||||||||||||||
|
OQ-RBS360200
|
In stock:
20 pcs. |
||||||||||||||||||
|
Packaging: 20 Quantity (multiple 1) |
30+/-10 | SMT | Tilt, Vibration | Optical | 10x10.5x8mm | OncQue | ||||||||||||
|

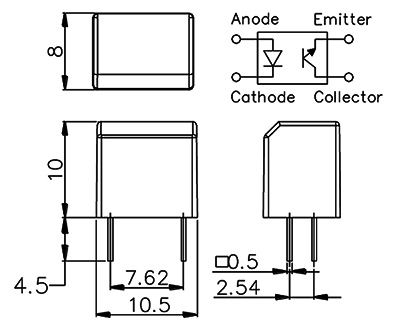

RBS311110
Tilt & vibration sensor, optical, THT, tilt angle: 45±10° diode: 75mW/50mA/5V; phototransistor: 100mW/20mA/30V, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS360300
|
In stock:
20 pcs. |
||||||||||||||||||
|
Stock availableWhile the stock lasts
Packaging: 20 Quantity (multiple 1) |
45+/-10 | THT | Tilt, Vibration | Optical | 10x10.5x8mm | OncQue | ||||||||||||
|

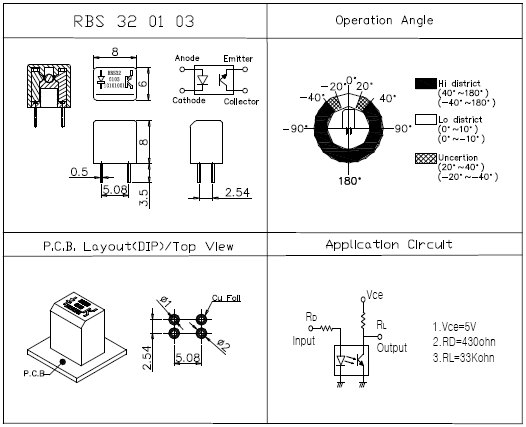

RBS320103
Tilt sensor, optical, THT, tilt angle: 30±10° diode: 75mW/50mA/5V; phototransistor: 100mW/20mA/30V, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS320103
|
In stock:
20 pcs. |
||||||||||||||||||
|
Stock availableWhile the stock lasts
Packaging: 20 Quantity (multiple 1) |
30+/-10 | THT | Tilt | Optical | 8x8x6mm | OncQue | ||||||||||||
|

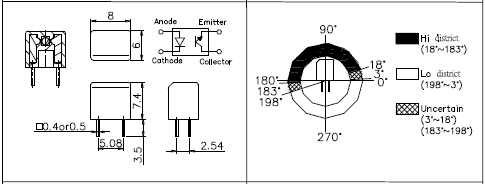

RBS330310
Tilt & vibration sensor, optical, THT, tilt angle: 45±10° diode: 75mW/50mA/5V; phototransistor: 100mW/20mA/30V, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS3303xx
|
In stock:
48 pcs. |
||||||||||||||||||
|
Packaging: 48/50 Quantity (multiple 1) |
45+/-10 | THT | Tilt, Vibration | Optical | 12x10.5x8mm | OncQue | ||||||||||||
|
RBS330311
Tilt & vibration sensor, optical, THT, tilt angle: 30±10° diode: 75mW/50mA/5V; phototransistor: 100mW/20mA/30V, temperature: -25÷85°C
|
|||||||||||||||||||
|
OQ-RBS3303xx
|
In stock:
20 pcs. |
||||||||||||||||||
|
Stock availableWhile the stock lasts
Packaging: 20 Quantity (multiple 1) |
30+/-10 | THT | Tilt, Vibration | Optical | 12x10.5x8mm | OncQue | ||||||||||||
|
RBS330313
Tilt & vibration sensor, optical, THT, tilt angle: 15±10° diode: 75mW/50mA/5V; phototransistor: 100mW/20mA/30V, temperature: -25÷85°C
|
|||||||||||||||||||
|
OQ-RBS3303xx
|
In stock:
20 pcs. |
||||||||||||||||||
|
Stock availableWhile the stock lasts
Packaging: 20 Quantity (multiple 1) |
15+/-10 | THT | Tilt, Vibration | Optical | 12x10.5x8mm | OncQue | ||||||||||||
|

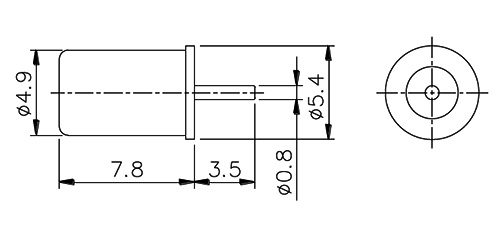

VBS020601
Centrifugal force sensor, normally open switch, THT, 1.5G < CFA < 6G endurance: 1000000 mechanical cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-VBS0206x1
|
In stock:
15 pcs. |
||||||||||||||||||
|
Packaging: 20 Quantity (multiple 1) |
THT | Centrifugal force | NO | 7.8xfi4.9mm | OncQue | |||||||||||||
|

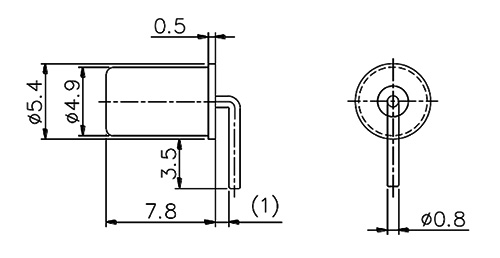

VBS020701
Centrifugal force sensor, normally open switch, THT, 1.5G < CFA < 5G endurance: 1000000 mechanical cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-VBS020701
|
In stock:
15 pcs. |
||||||||||||||||||
|
Packaging: 15 Quantity (multiple 1) |
THT | Centrifugal force | NO | 7.8xfi4.9mm | OncQue | |||||||||||||
|

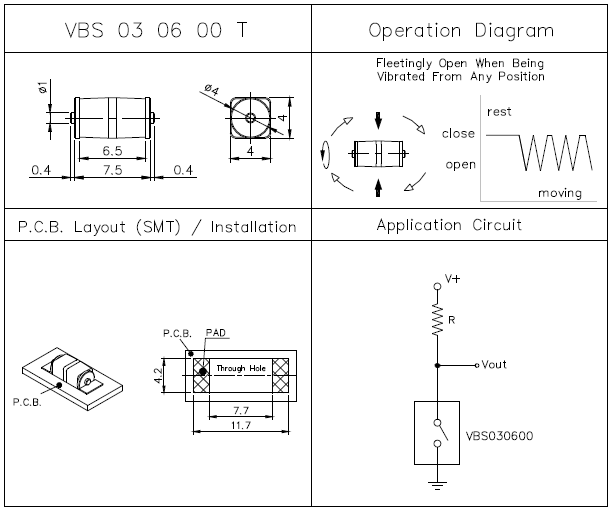

VBS030600
Vibration sensor, normally closed switch, SMT contact: 10mA/5VDC, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-VBS030600
|
In stock:
100 pcs. |
||||||||||||||||||
|
Packaging: 100 Quantity (multiple 1) |
SMT | Vibration | NC | 7.5xfi4mm | OncQue | |||||||||||||
|

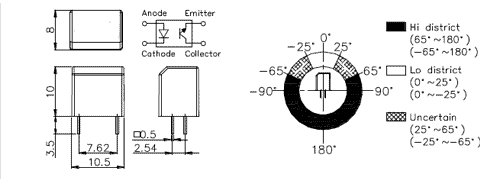

VBS040100
Vibration sensor, optical, THT diode: 75mW/50mA/5V; phototransistor: 100mW/20mA/30V, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS360100
|
In stock:
20 pcs. |
||||||||||||||||||
|
Packaging: 10/20 Quantity (multiple 1) |
THT | Vibration | Optical | 10x10.5x8mm | OncQue | |||||||||||||
|
VBS040200
Vibration sensor, optical, SMT diode: 75mW/50mA/5V; phototransistor: 100mW/20mA/30V, temperature: -25÷85°C
|
|||||||||||||||||||
|
OQ-RBS360200
|
In stock:
13 pcs. |
||||||||||||||||||
|
Packaging: 15 Quantity (multiple 1) |
SMT | Vibration | Optical | 10x10.5x8mm | OncQue | |||||||||||||
|

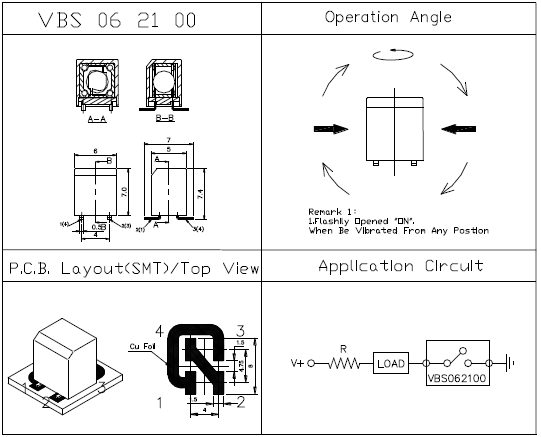

VBS062100
Vibration sensor, normally closed switch, SMT contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
|
OQ-RBS152100
|
In stock:
40 pcs. |
||||||||||||||||||
|
Packaging: 50 Quantity (multiple 1) |
SMT | Vibration | NC | 7x6x5mm | OncQue | |||||||||||||
|

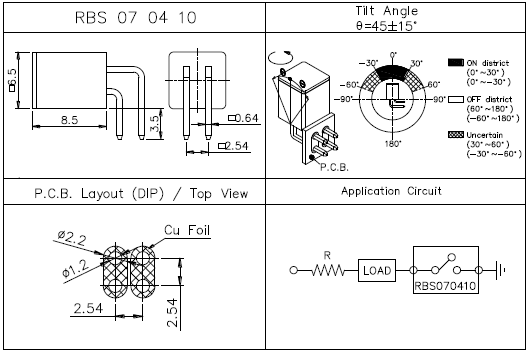

RBS070410
Tilt sensor, normally closed switch, THT, tilt angle: 45±15° contact: 10mA/5VDC/10Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS070410
|
45+/-15 | THT | Tilt | NC | 8.5x6.5x6.5mm | OncQue | |||||||||||||
|
|
Item available on a request
|
||||||||||||||||||
|

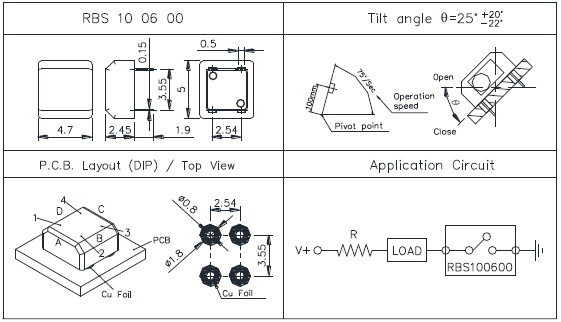

RBS100600
Tilt sensor, normally open switch, THT, tilt angle: 25°+20°/-22° contact: 10mA/5VDC/50Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
|
OQ-RBS10060x
|
25+20/-22 | THT | Tilt | NO | 2.45x5x4.7mm | OncQue | |||||||||||||
|
|
Item available on a request
|
||||||||||||||||||
|
RBS100602
Vibration sensor, normally open switch, THT, 0.1G < HM/V < 0.5G contact: 10mA/5VDC/50Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
|
OQ-RBS10060x
|
THT | Vibration | NO | 2.45x5x4.7mm | OncQue | ||||||||||||||
|
|
Item available on a request
|
||||||||||||||||||
|

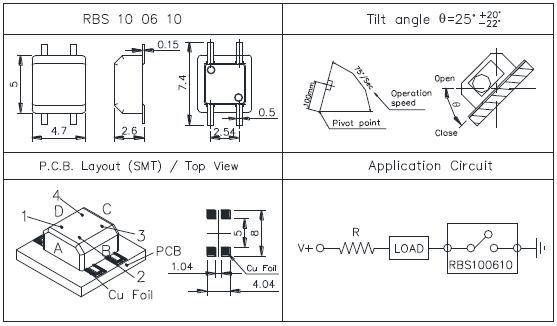

RBS100610
Tilt sensor, normally open switch, SMT, tilt angle: 25°+20°/-22° contact: 10mA/5VDC/50Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
OQ-RBS10061x
|
25+20/-22 | SMT | Tilt | NO | 2.6x5x4.7mm | OncQue | |||||||||||||
|
|
Item available on a request
|
||||||||||||||||||
|
RBS100611
Rotation sensor, normally closed switch, SMT, tilt angle: 45±15° contact: 10mA/5VDC/50Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
|
OQ-RBS10061x
|
45+/-15 | SMT | Rotation | NC | 2.6x5x4.7mm | OncQue | |||||||||||||
|
|
Item available on a request
|
||||||||||||||||||
|
RBS100612
Vibration sensor, normally open switch, SMT, 0.1G < HM/V < 0.5G contact: 10mA/5VDC/50Ω max, endurance: 100000 cycles, temperature: -25÷85°C
|
|||||||||||||||||||
|
OQ-RBS10061x
|
SMT | Vibration | NO | 2.6x5x4.7mm | OncQue | ||||||||||||||
|
|
Item available on a request
|
||||||||||||||||||
