Trimmer potentiometer chip type (results: 40)
| Product | Cart |
Manufacturer
|
Type of potentiometer
|
Kind of potentiometer
|
Resistance
|
Power
|
Mounting
|
Tolerance
|
Temperature coefficient
|
Characteristic
|
Operating temperature (range)
|
Dimensions
|
Number of rotations
|
Rotation angle
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Single turn cermet trimmer potentiometer; 3305; 3.3kR;
3.3kR; turn: 270°; SMD; 3.8x3.7x1.2mm; power: 0.15W; tolerance: ±25%; 250ppm/°C; operating temperature: -40÷100°C
|
|||||||||||||||
Rys.3305SMD
|
N/A | Mounting | Single-turn | 3,3 kOhm | 150mW | SMD | 25% | 250ppm/°C | N/A | -40°C ~ 100°C | 3.8x3.7x1.2mm | 1 | 270° | ||
|
|
Item available on a request
|
||||||||||||||
|
Single turn cermet trimmer potentiometer; 3305; 20kR;
20kR; turn: 270°; SMD; 3.8x3.7x1.2mm; power: 0.15W; tolerance: ±25%; 250ppm/°C; operating temperature: -40÷100°C; equivalent: TC33X-2-203E
|
|||||||||||||||
|
Rys.3305SMD
|
N/A | Mounting | Single-turn | 20 kOhm | 150mW | SMD | 25% | 250ppm/°C | N/A | -40°C ~ 100°C | 3.8x3.7x1.2mm | 1 | 270° | ||
|
|
Item available on a request
|
||||||||||||||
|
Single turn cermet trimmer potentiometer; 3305; 50kR;
50kR; turn: 270°; SMD; 3.8x3.7x1.2mm; power: 0.15W; tolerance: ±25%; 250ppm/°C; operating temperature: -40÷100°C; equivalent: TC33X-2-503E
|
|||||||||||||||
|
Rys.3305SMD
|
N/A | Mounting | Single-turn | 50 kOhm | 150mW | SMD | 25% | 250ppm/°C | N/A | -40°C ~ 100°C | 3.8x3.7x1.2mm | 1 | 270° | ||
|
|
Item available on a request
|
||||||||||||||
|
Single turn cermet trimmer potentiometer; 3305; 100kR;
100kR; turn: 270°; SMD; 3.8x3.7x1.2mm; power: 0.15W; tolerance: ±25%; 250ppm/°C; operating temperature: -40÷100°C; equivalent: TC33X-2-104E
|
|||||||||||||||
|
Rys.3305SMD
|
N/A | Mounting | Single-turn | 100 kOhm | 150mW | SMD | 25% | 250ppm/°C | N/A | -40°C ~ 100°C | 3.8x3.7x1.2mm | 1 | 270° | ||
|
|
Item available on a request
|
||||||||||||||
|
Single turn cermet trimmer potentiometer; 3305; 200kR;
200kR; turn: 270°; SMD; 3.8x3.7x1.2mm; power: 0.15W; tolerance: ±25%; 250ppm/°C; operating temperature: -40÷100°C
|
|||||||||||||||
|
Rys.3305SMD
|
N/A | Mounting | Single-turn | 200 kOhm | 150mW | SMD | 25% | 250ppm/°C | N/A | -40°C ~ 100°C | 3.8x3.7x1.2mm | 1 | 270° | ||
|
|
Item available on a request
|
||||||||||||||
|
Single turn cermet trimmer potentiometer; 3305; 500kR;
500kR; turn: 270°; SMD; 3.8x3.7x1.2mm; power: 0.15W; tolerance: ±25%; 250ppm/°C; operating temperature: -40÷100°C
|
|||||||||||||||
|
Rys.3305SMD
|
N/A | Mounting | Single-turn | 500 kOhm | 150mW | SMD | 25% | 250ppm/°C | N/A | -40°C ~ 100°C | 3.8x3.7x1.2mm | 1 | 270° | ||
|
|
Item available on a request
|
||||||||||||||
|
Single turn cermet trimmer potentiometer; 3305; 1MR;
1MR; turn: 270°; SMD; 3.8x3.7x1.2mm; power: 0.15W; tolerance: ±25%; 250ppm/°C; operating temperature: -40÷100°C; equivalent: TC33X-2-105E
|
|||||||||||||||
|
Rys.3305SMD
|
N/A | Mounting | Single-turn | 1 MOhm | 150mW | SMD | 25% | 250ppm/°C | N/A | -40°C ~ 100°C | 3.8x3.7x1.2mm | 1 | 270° | ||
|
|
Item available on a request
|
||||||||||||||
|
Multiturn cermet trimmer; 5kR
Multiturn cermet trimmer; 5kR; 12 turns; SMD; 6,8x6,8x4,6mm; power: 250mW; tolerance 10%; 100ppm/°C; operating temperature: -55°C÷125°C
|
|||||||||||||||

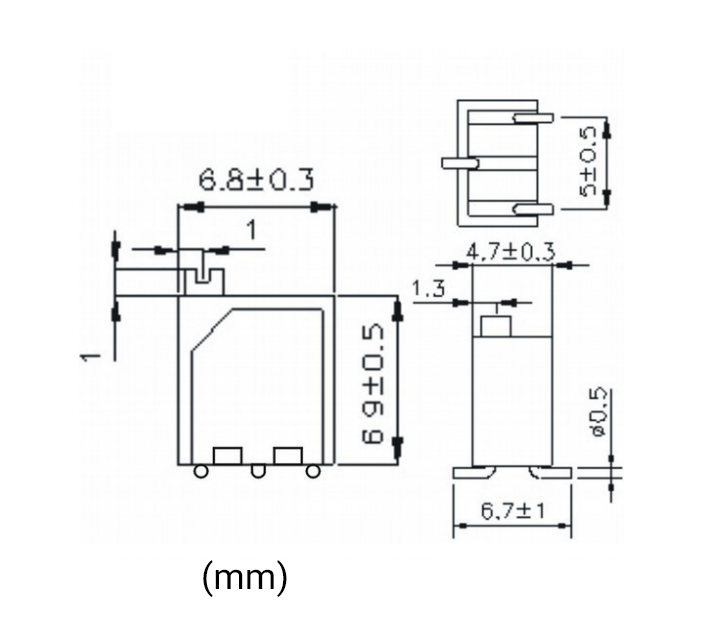

Rys.1806W
|
N/A | Mounting | Multi-turn | 5,0kOhm | 0,25W | SMD | 10% | 100ppm/°C | Linear | -55°C ~ 125°C | 6,8x6,8x4,6mm | 12 | |||
|
|
Item available on a request
|
||||||||||||||
|
Multiturn cermet trimmer; 10kR
11 turns; SMD; 4,8x3,5x5,1mm; power: 250mW; tolerance 10%; 100ppm/°C; operating temperature: -55°C÷125°C
|
|||||||||||||||
Rys.3224w
|
N/A | Mounting | Multi-turn | 10 kOhm | 0,25W | SMD | 10% | 100ppm/°C | Linear | -55°C ~ 125°C | 4,8x3,5x5,1mm | 11 | |||
|
|
Item available on a request
|
||||||||||||||
|
44WR50KLF TT Electronics Trimmer
Multiturn cermet trimmer; 50kR; SMD; 5,08x4,83x3,51mm; power: 0,25W; tolerance 10%; 100ppm/°C; operating temperature: -65°C÷150°C
|
|||||||||||||||
Rys.44WR
|
TT Electronics | Mounting | Multi-turn | 50 kOhm | 0,25W | SMD | 10% | 100ppm/°C | N/A | -65°C ~ 150°C | 5,08x4,83x3,51mm | 9 | |||
|
|
Item available on a request
|
||||||||||||||
