MRS102A-C3r; rocker switch;
2 stable positions; ON-ON; cap colour: red; SPDT; 3P; 10A 125VAC or 6A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
10A 125V 6A 250V | SPDT | N/A | ON-ON | -25°C ~ 85°C | Rocker | N/A | Red | Black | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-07-30
Quantity of pieces: 100
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIRS201-C3r; illuminated; rocker switch;
2 stable positions; ON-OFF; rocker red illumination; DPST; 4P; 6A 125V; 3A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
6A 125V 3A 250V | DPST | N/A | ON-OFF | -25°C ~ 85°C | Button | N/A | Red | Red | Black | |||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-07-30
Quantity of pieces: 470
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KN3B-223AE; toggle switch;
double pole; screw terminals; flat lever, (ON)-OFF-(ON); DPDT; 6P; 15A 125VAC; 10A 250VAC
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
15A 125V 10A 250V | DPDT | (ON)-OFF-(ON) | Lever | N/A | Screw on | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

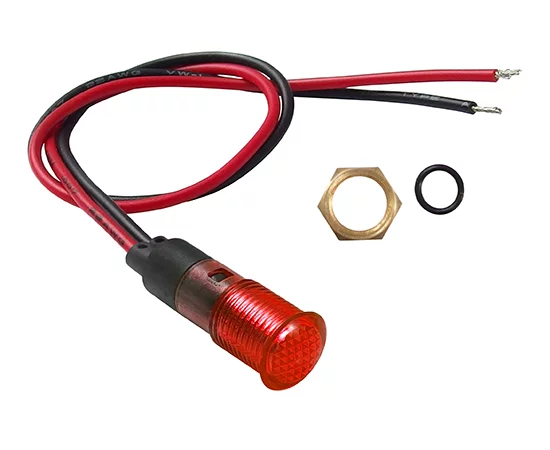

Indicator LED WW08NWR24/P
8mm; high round; PC; wires 20cm; illuminated LED 12V; red; IP50; 15mA; electrical life: 80,000h
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP50 | Wires | 8mm | 24V | Red | ABS material | -20°C ~ 85°C | 20cm | Convex | 15mA | |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MRS103A-2C6b; rocker switch;
3 stable positions; ON-OFF-ON; cap colour: black; SPDT; 3P; 10A 125VAC or 6A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10A 125V 6A 250V | SPDT | N/A | ON-OFF-ON | -25°C ~ 85°C | Rocker | N/A | Black | Black | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KAN4542 TACTRONIC Tact switch
4.5x4.5mm H=4.5, 12V DC, 50 mA, life 100000 cycles, travel 0.25c0.1mm, pady 6mm SMD, operating force 160c50gf, return force 40gF min. taped
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
4.5x4.5mm | 4,3mm | TACTRONIC | 160gF | SMD | 100000 cycles | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-08-10
Quantity of pieces: 8000
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KN3D-101; toggle switch;
single pole; solder terminals; ON-OFF; SPST; 2P; 6A 125VAC; 3A 250VAC; 25A 12VDC
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
3A 250V 25A 12V | SPST | ON-OFF | Lever | N/A | Soldering | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-07-30
Quantity of pieces: 2550
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-11-15
Quantity of pieces: 1500
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIRS201A-C3r; illuminated; rocker switch;
2 stable positions; ON-OFF; rocker red illumination; DPST; 4P; 10A 125V; 6A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
10A 125V 6A 250V | DPST | N/A | ON-OFF | -25°C ~ 85°C | Button | N/A | Red | Red | Black | |||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-07-30
Quantity of pieces: 500
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KN3D-111; toggle switch;
single pole; solder terminals; (ON)-OFF; SPST; 2P; 6A 125VAC; 3A 250VAC; 10A 12VDC
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
3A 250V 10A 12V | SPST | (ON)-OFF | Lever | N/A | Soldering | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-07-30
Quantity of pieces: 300
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIRS201A-C3g; illuminated; rocker switch;
2 stable positions; ON-OFF; rocker green illumination; DPST; 4P; 10A 125V; 6A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10A 125V 6A 250V | DPST | N/A | ON-OFF | -25°C ~ 85°C | Button | N/A | Green | Green | Black | |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTS203-C3; toggle switch;
double pole; angled 90°; PCB; ON-OFF-ON; DPDT; 6P; 6A 125VAC; 3A 250VAC
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6A 125VAC 3A 250VAC | DPDT | ON-OFF-ON | Lever | N/A | For printing | Round | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MRS101-5b; rocker switch;
3 stable positions; ON-OFF-ON; cap colour: black; SPDT; 2P; 10A 125VAC or 6A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
10A 125V 6A 250V | SPDT | N/A | ON-OFF-ON | -25°C ~ 85°C | Rocker | N/A | Black | Black | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-09-10
Quantity of pieces: 200
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MSW-40; micro switch;
15A; 250VAC; OFF-(ON); SPDT; 3P; endurance: 100000 cycles; ambient temperature: -25°C+80°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
26,2x20,2mm | 15A 250VAC | SPDT | N/A | OFF-(ON) | -25°C ~ 80°C | Micro switch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-09-10
Quantity of pieces: 40
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

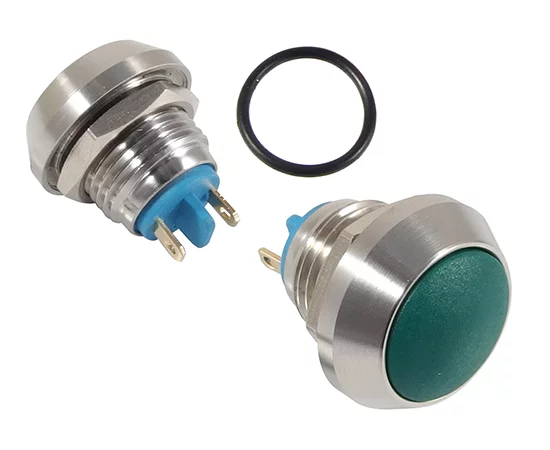

Vandal proof push button switch; W16B10R/C
16mm; momentary; 1NO; brass; pin terminals; front shape-domed; 2A; 36VDC; IP65; electrical life: 200.000 cycles
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2A/36VDC | N/A | N/A | 1NO | Convex | IP65 | Vandal-resistant | For soldering | N/A | N/A | 16mm | N/A | N/A | Momentary | |||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KN3D-102; toggle switch;
single pole; solder terminals; ON-ON; SPDT; 3P; 6A 125VAC; 3A 250VAC; 25A 12VDC
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
3A 250V 25A 12V | SPDT | ON-ON | Lever | N/A | Soldering | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-07-30
Quantity of pieces: 2000
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MIRS201-2C3o; illuminated; rocker switch;
2 stable positions; ON-OFF; rocker orange illumination; DPST; 4P; 6A 125V; 3A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6A 125V 3A 250V | DPST | N/A | ON-OFF | -25°C ~ 85°C | Button | N/A | Orange | Orange | Black | |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

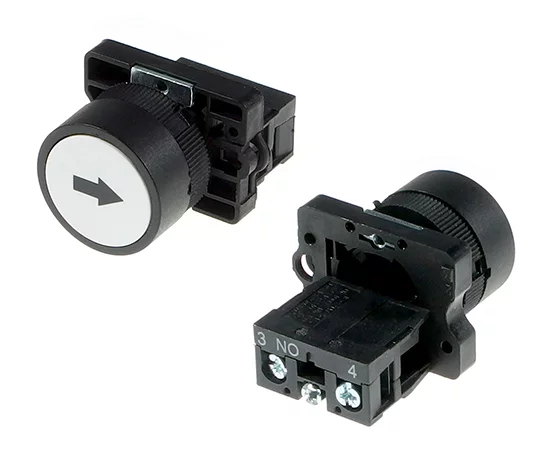

Control box; N/O
Control box; white; flush; round; spring return; N/O; with arrow mark; one button; current: 10A; dimensions: 55x29mm
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
55x29mm | N/O | N/A | White | Round | N/A | None | 30mm | N/A | Covered | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

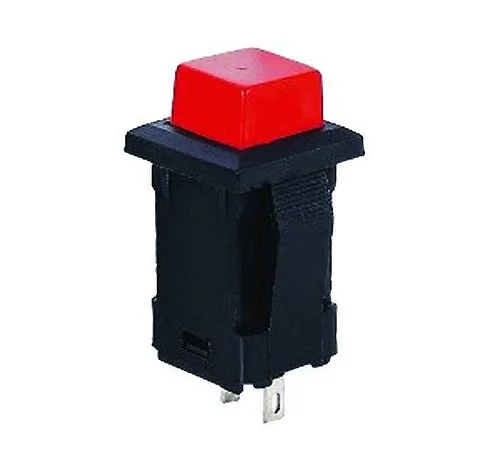

Switch PBS-15A Red
2 stable positions; ON-OFF; red colour; square; 3A 125VAC 1A 250VAC; endurance: 50000 cycles
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3A 125VAC 1A 250VAC | N/A | ON-OFF | -25°C ~ 85°C | Red | Square | None | None | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

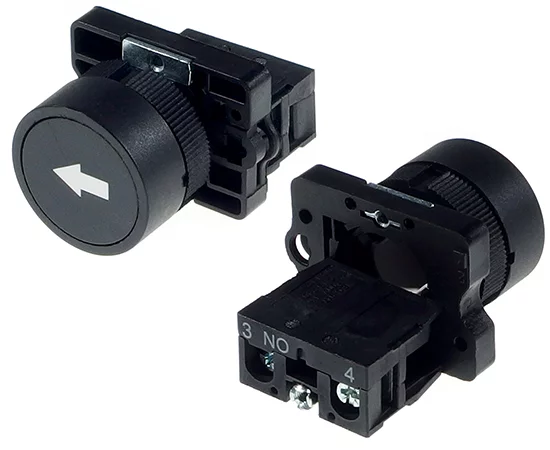

Control box; N/O
Control box; black; flush; round; spring return; N/O; with arrow mark; one button; current: 10A; dimensions: 55x29mm
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
55x29mm | N/O | N/A | Black | Round | N/A | None | 30mm | N/A | Covered | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MRS-2-101-2C3b; rocker switch;
2 stable positions; ON-OFF; cap colour: black; SPST; 2P; 10A 125VAC or 6A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10A 125V 6A 250V | SPST | N/A | ON-OFF | -25°C ~ 85°C | Rocker | N/A | Black | Black | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

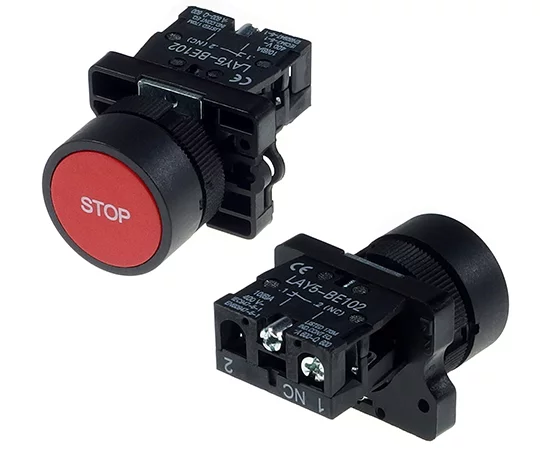

Control box; N/C
Control box; red; flush; round; with mark (STOP); spring return; N/C; one button; current: 10A; dimensions: 55x29mm
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
55x29mm | N/C | N/A | Red | Round | N/A | None | 30mm | N/A | Covered | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MRS-2-101-2C3r; rocker switch;
2 stable positions; ON-OFF; cap colour: red; SPST; 2P; 10A 125VAC or 6A 250VAC; endurance: 10000 cycles; ambient temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10A 125V 6A 250V | SPST | N/A | ON-OFF | -25°C ~ 85°C | Rocker | N/A | Red | Black | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KN3E-101MP; toggle switch;
single pole; solder terminals; ON-OFF; SPST; 2P; metal lever; 6A 125VAC; 3A 250VAC
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
6A 125V 3A 250V | SPST | ON-OFF | Lever | N/A | Soldering | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-07-30
Quantity of pieces: 200
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal proof push button switch; W16F10R/S
16mm; momentary; 1NO; stainless steel; pin terminals; front shape-flat; 2A; 36VDC; IP65; electrical life: 200.000 cycles
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2A/36VDC | N/A | N/A | 1NO | Flat | IP65 | Vandal-resistant | For soldering | N/A | N/A | 16mm | N/A | N/A | Momentary | |||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Switch PBS-15B Black
momentary; OFF-(ON); (open type); black colour; square 3A 125VAC 1A 250VAC; endurance: 50000 cycles; equivalent: PS15BBK
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
3A 125VAC 1A 250VAC | N/A | OFF-(ON) | -25°C ~ 85°C | Black | Square | None | None | |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-07-30
Quantity of pieces: 250
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item in delivery
Estimated time: 2025-11-15
Quantity of pieces: 1000
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KAN0621 TACTRONIC Tact switch
6x6mm H=7.0mm (3.5mm), 12V DC, 50 mA, life 100000 cycles, travel 0.25c0.1mm, with ground pin straight, for PCB (THT), operating force 160c50gf, return force 40gf min.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6x6mm | 7,0mm | TACTRONIC | 160gF | THT (Ground pin) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ESS0511310; micro switch;
3A; 250VAC; ON-(ON); SPDT; 3P; endurance: 200000 cycles; ambient temperature: -25°C+85°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
19,8x10,2x6,4mm | 3A 250VAC | SPDT | N/A | ON-(ON) | -25°C ~ 85°C | Micro switch | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTS202-C4; toggle switch;
double pole; angled 90°; PCB; ON-ON; DPDT; 6P; 6A 125VAC; 3A 250VAC
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6A 125VAC 3A 250VAC | DPDT | ON-ON | Lever | N/A | For printing | Round | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal proof push button switch; W16H10R/C
16mm; momentary; 1NO; brass; pin terminals; front shape-high; round; 3A; 250VAC; IP67; electrical life: 50.000 cycles
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3A/250VAC | N/A | N/A | 1NO | Convex | IP67 | Vandal-resistant | For soldering | N/A | N/A | 16mm | N/A | N/A | Momentary | |||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S12N20E06 slide switch
Miniature Slide Switch, vertical, 1 pole type 1C, for PCB
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SUN-RISE | THT | 30V | 0,5A | Horizontal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Item available on a request
|
